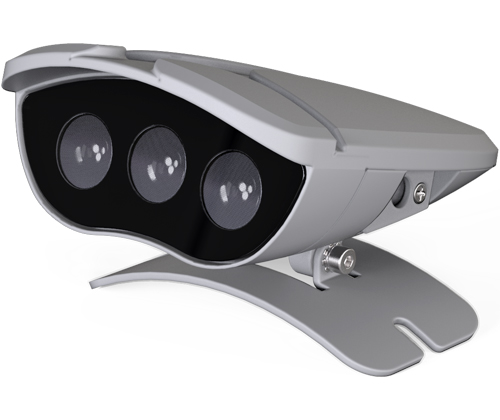

Special Light EXC-WL97DRL

EXC- WL97DRL series products are a kind of high-strength aluminum alloy shell specially designed for outdoor landscape lighting, which can be used for specific lighting areas or landscape painting, landscape gardening, etc.

Specification Optical Parameters of Special Light EXC-WL97DRL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2700K-6500K), RGB, RGBW, etc.

  • Beam Angle: W-3030P7: 10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7/CREE XP series: 6°/8°/10°/15°20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 17°/20°/30°/45°/60°, Open beam and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-WL97DRL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 6/9W


Control Parameters of Special Light EXC-WL97DRL

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-WL97DRL

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 97mm x 147mm x 64mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.54Kg


Environmental Parameters of Special Light EXC-WL97DRL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
