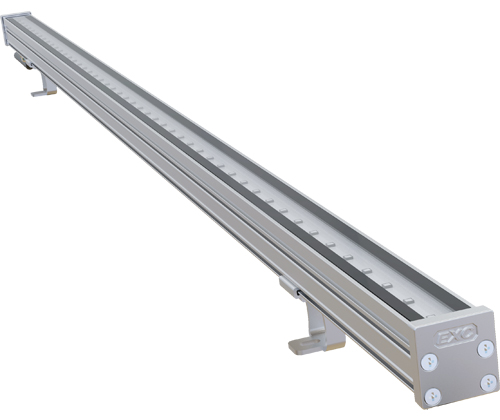

Outdoor Linear Light Contour EXC-U25FCB0

EXC-U25FCB0 full color series products are extra-narrow LED linear light with aluminum shell for outdoor landscape decoration. The width of EXC-U25FC is only 25mm, each one with 8 pixels and each pixel can realize 256 grade gray scale color changing. EXC-U25FC can be applicable for super large area displaying or outline the building. It also can be used to decorate facade inside and outside, even small area wall-washing effect.

Specification Optical Parameters of Outdoor Linear Light Contour EXC-U25FCB0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: ≥95°

  • Source Life: 50,000h


Electrical Parameters of Outdoor Linear Light Contour EXC-U25FCB0

  • Working Voltage: DC 24V

  • Rated Power: W/RGB(9W/12W/15W), RGBW(/15W/18W), RGB+W(12W/18W)


Control Parameters of Outdoor Linear Light Contour EXC-U25FCB0

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Outdoor Linear Light Contour EXC-U25FCB0

  • Shell Material: Aluminum alloy

  • Surface Color: Black&White,Other color optional

  • Structure Size: 998mm x 53mm x 27.7mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.42Kg


Environmental Parameters of Outdoor Linear Light Contour EXC-U25FCB0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
