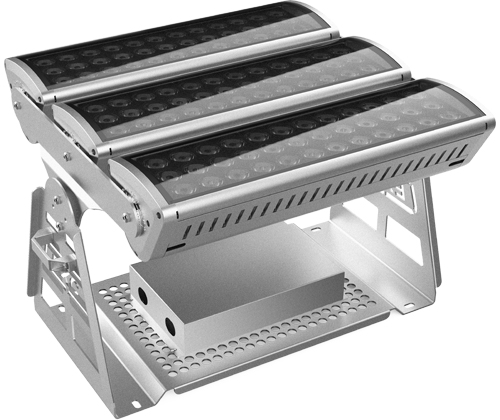

Narrow Beam Flood Light EXC-B175CBH

Name: Narrow Beam Flood Light EXC-B175CBH
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-B175CBH series consists of triangular full-color flood lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Get a quote

Specification Optical Parameters of Narrow Beam Flood Light EXC-B175CBH

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram
Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW
Beam Angle:
W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°
RGB-3030P7/CREE XP SERIES: 6°/8°/10°/15°20°/30°/45°/60°/80° 3535:30°/45°/60°/80°
5050: 17°/20°/30°/45°/60°
Source Life: 50,000h

Electrical Parameters of Narrow Beam Flood Light EXC-B175CBH

Working Voltage: AC 220V
Rated Power: Maximum 300W/360W/450W

Control Parameters of Narrow Beam Flood Light EXC-B175CBH

Control Method: DMX512 /ON OFF
Gray Scale: 8Bits/16Bits
Control System: EXC-ALL the lights control system

Structural Parameters of Narrow Beam Flood Light EXC-B175CBH

Shell Material: High Strength Aluminum
Cover: Tempered glass
Surface Color: Black&White, Other colors optional
Structure Size: 616mm x 572mm x 423mm (L x W x H, exclude Mounting Bracket)
Total Weight: 28.06kg

Environmental Parameters of Narrow Beam Flood Light EXC-B175CBH

Working Temperature: -40°C to 50°C
Storage Temperature: -40°C to 70°C
Protection rating: IP66
Application environment: Outdoor
