LED Pixel Light EXC-P40AP2

EXC-P40AP2 full-color series consists of professional chip LED pixel lights specially designed by EXC for outdoor high-rise landscape lighting. Each pixel is a separate lighting pixel, and each pixel can realize 65536 grades gray scale changing; they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting; the pixel pitch can be customized; its installation is simple and reliable.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Integrated clip-on endless connection

  • Fully sealed and waterproof design with high thermal conductive adhesive imported from Germany

  • Special outdoor lightning and ESD protection


Specification

Basic Specifications

Color

RGB+W

Working Voltage

24V

Max. Power Consumption

1.8W

Light Source

4pcs SMD RGB+ 2pcs SMD W LEDs

CRI

80

Control

DMX512

Grey Scale

8bit,16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent,Opal)

Housing

PC+ABS

Weight

35g

Dimensions

62mm x 40.5mm x 15mm (L x W x H, exclude Mounting Bracket)

Installation

Installation By Aluminum Profile

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

21cd

Beam Angle

120°

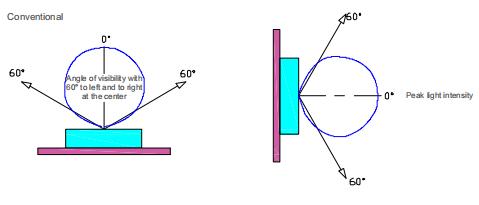

Light Intensity Distribution


Light Intensity Chart

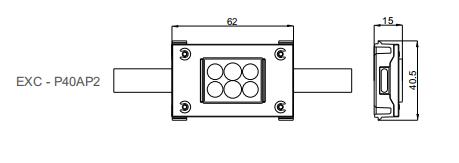

Physical Dimension

Unit:mm

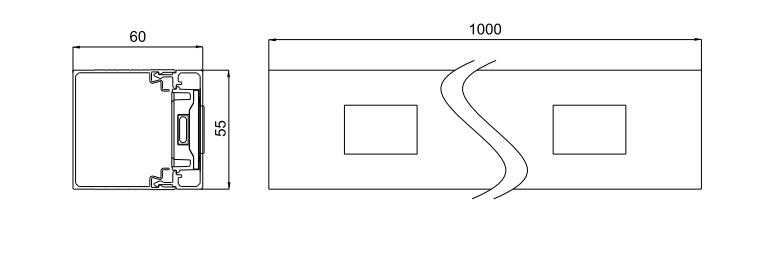

Installation by Aluminum Profile





Accessories :


1: Female and Male Connector( Connect to first dot light for signal transmission)



2: Y Shape Connector(For power Distribution)





3: Interconnection Cable(1.3M,3M,5M is standard length)




4: End Cap


System connection diagram:

1, Host controller should connect with slave controller. Working voltage for controllers are AC220V.

2, On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.

3, each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.

4, The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.

Online Controlling System Diagram





Offline Controlling System Diagram


1: Female and Male Connector( Connect to first dot light for signal transmission)






2: Y Shape Connector(For power Distribution)






3: Interconnection Cable(1.3M,3M,5M is standard length)





4: End Cap
