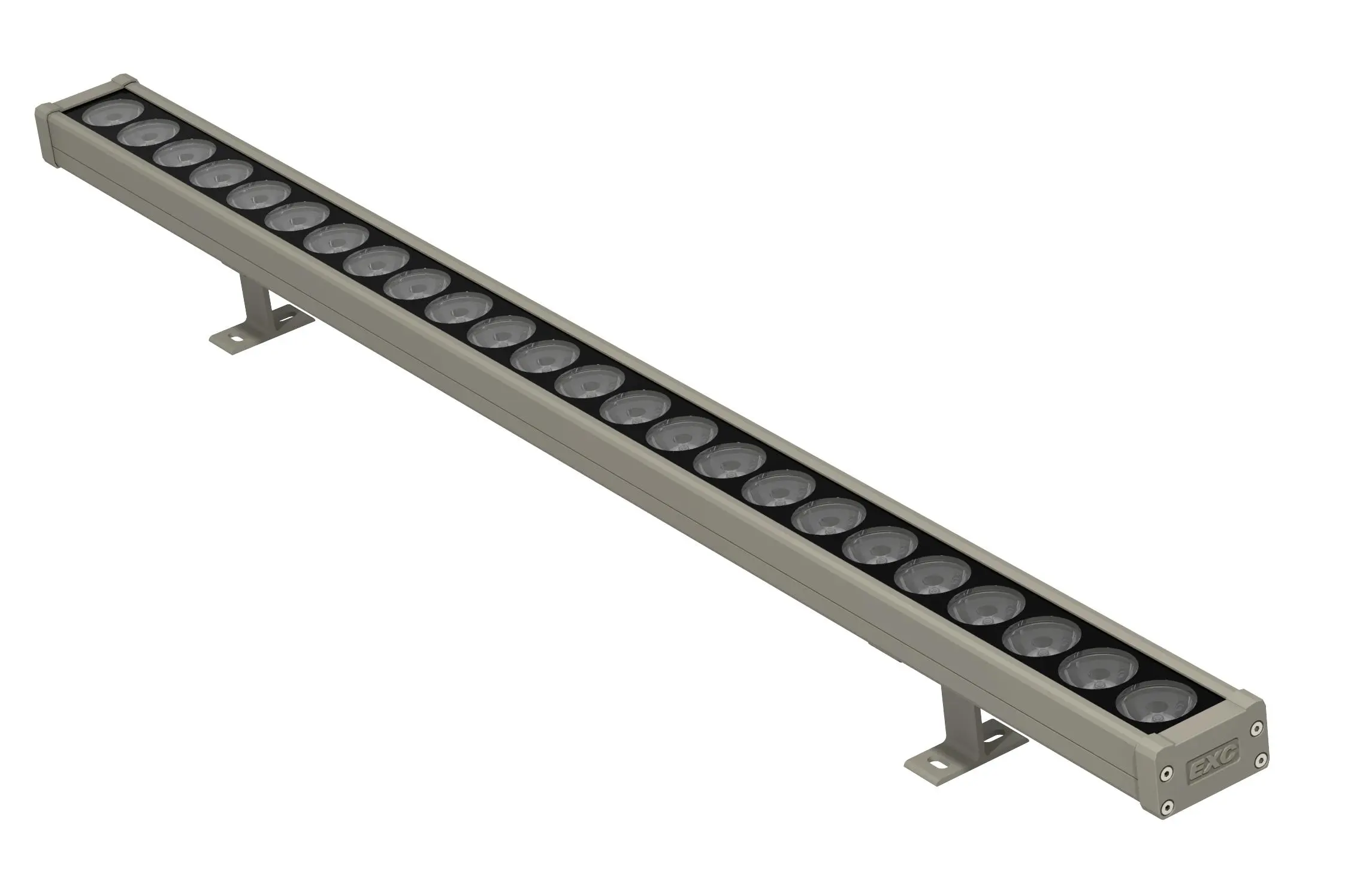

EXC-W62CBL Multi-pixel LED Wall Washer

Name: EXC-W62CBL Multi-pixel LED Wall Washer
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-W62CBL full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W62CBL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.

Get a quote

Features

The newest generation technology: DMX512 parallel bus design
Unique waterproof and breathable design
Low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design
Projection distance: 1-5m

Specification

Basic Specifications
Color Range	RGBW, RGB, W(2200K-6500K)
Light Source	18(RGBW), 36(W, RGB, RGBW) pcs LEDs
Working Voltage	DC 24V
Max. Power Consumption	36W(RGBW, RGBW), 72W(white, RGBW )
Control	DMX512, ON/OFF
Segment	1
Grey Scale	8bit, 16bit
Source Life	50,000 h
RDM	Optional
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Housing	High Strength Aluminum
Cover	Tempered glass
Weight	2.5KG
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Efficiency flux	75LM/W(white), 25LM/W(RGB), 35LM/W(RGBW)
Beam Angle	XP series: 8°、10°、15°、1530°、30°、60° CREE 5050 RGBW(four in one) /XMLRGBW(four in one)： 15°、30°、45°、60°、1530° and other beam angle available

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
