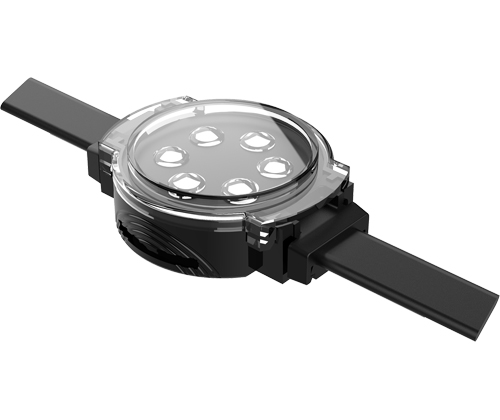

LED Pixel Light EXC-P42GP

EXC-P42GP full-color series is a full-color LED series string LED pixel, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P42GP pixel is a separate lighting pixel, and each pixel can realize 4096 grades grayscale changing. They can be used for indoor and outdoor applications, such as building facades, shopping malls, celebration ceremony or party decorations. Customized pixel pitch, and easy installation, as well as reasonable pixel light price.

Specification Optical Parameters of LED Pixel Light 2W EXC-P42GP

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color: RGB, RGB+W, W,etc

Beam Angle: 120degree, Open beam, and other angles optional

Source Life: 50,000h


Electrical Parameters of LED Pixel Light 2W EXC-P42GP

  • Working Voltage: DC24V

  • Rated Power: Maximum:1.8W


Control Parameters of LED Pixel Light 2W EXC-P42GP

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 2W EXC-P42GP

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 56mm x 42mm x 16.5mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 35g


Environmental Parameters of LED Pixel Light 2W EXC-P42GP

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
