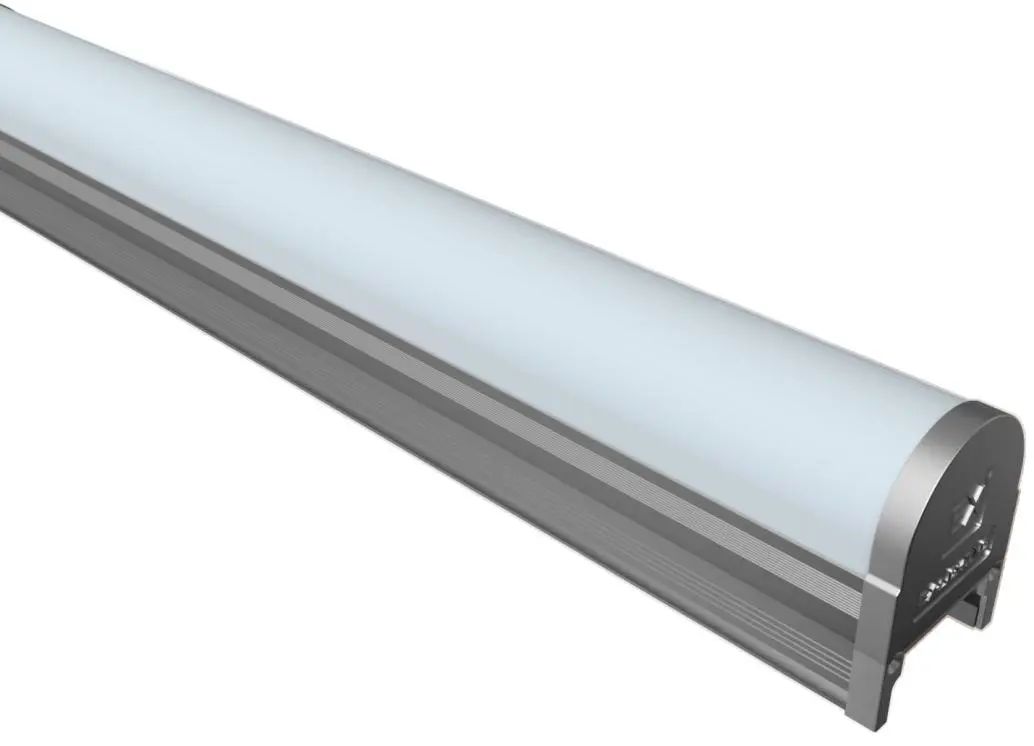

Outdoor Linear Light Milky EXC-D50BAB0

Name: Outdoor Linear Light Milky EXC-D50BAB0
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-D50BAB0 full color series products are extra-narrow LED linear light with aluminum shell for outdoor landscape decoration. each pixel can realize 65536 grade gray scale color changing. EXC-D50BAB0 can be applicable for super large area displaying or outline the building. It also can be used to decorate facade inside and outside, even small area wall-washing effect.

Get a quote

Features

The newest generation technology: DMX512 parallel bus design
Internal unique card button connection modular design
Full-sealed filling waterproof design by German imported glue
Low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design

Specification

Basic Specifications
Color Range	RGB/RGBW/W
Working Voltage	DC 24V
Max. Power Consumption	9W/12W/15W/18W
Light Source	36/48/60 pcs LEDs
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
CRI	80
Control	DMX512, ON/OFF
Segment	1/4/5/6/8/10
Source Life	50,000 h
Housing	High strength aluminum alloy
Cover	PC(Transparent, Opal)
Weight	0.77Kg
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Efficiency flux	40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW),Milky diffuser decrease 30%-50%）
Beam Angle	≥120°

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
