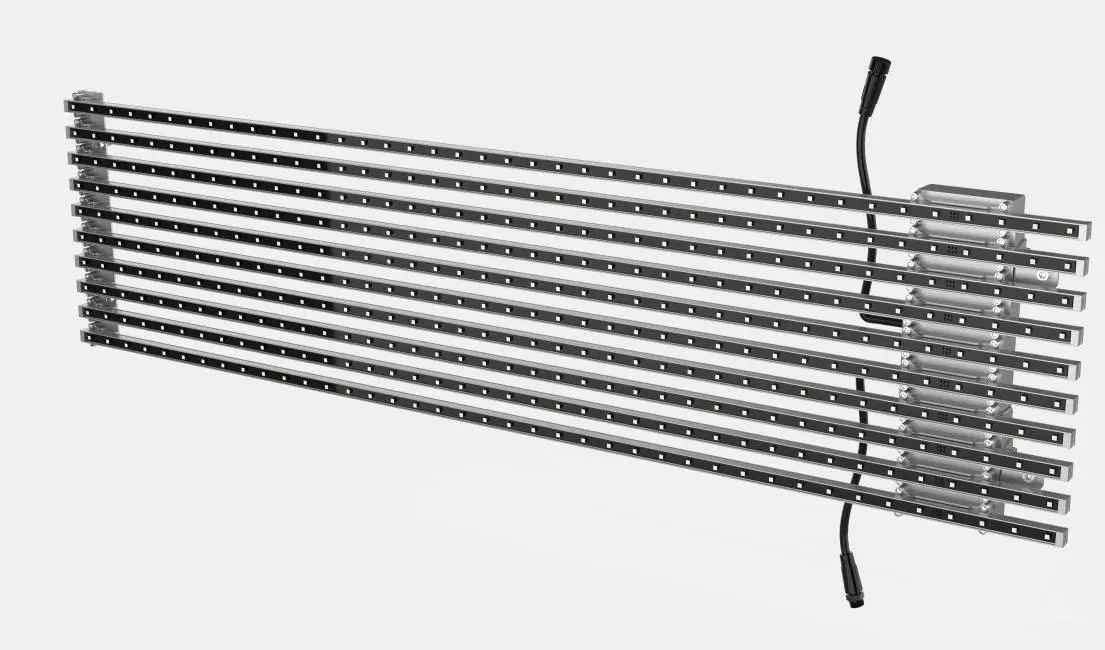

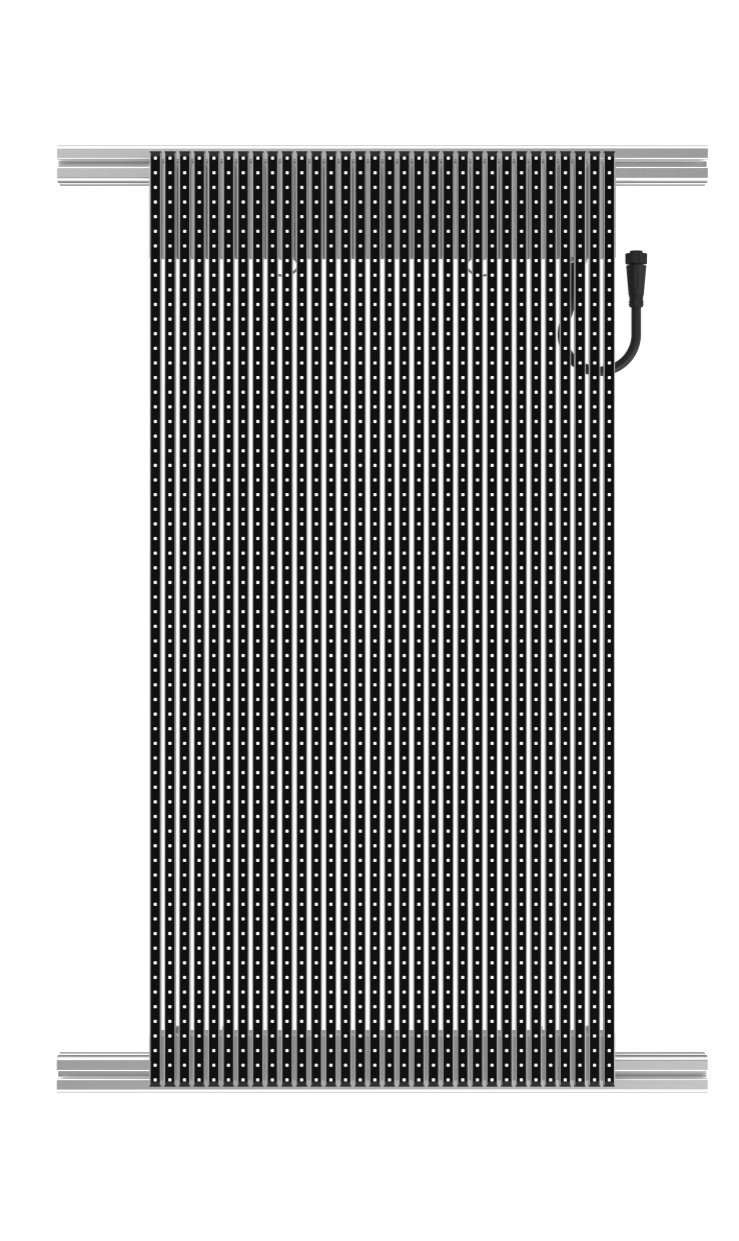

EXC-LED Grille screen

LED Grid screen series products are a kind of LED grid screen with aluminum profile shell specially designed for outdoor landscape lighting by ecklet. The products are light and transparent, suitable for media advertising applications such as glass curtain wall, building exterior wall and outdoor large screen.


Features

  • The New generation synchronous control system

  • Low power consumption, high penetration design

  • Light and ultra thin design with small wind load

  • Modular, waterproof and detachable structure, convenient and fast maintenance

  • No steel structure, front and back installation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design


Specification

Product specifications

Product model

GS2525A

GS2536A

GS2550A

GS5050A

GS3264A

LED light source

SMD3535 RGB

SMD3535 RGB

SMD3535 RGB

SMD3535 RGB

SMD3535

RGB

Pixel spacing

25*25.6mm

25*36.5mm

25*51.2 mm

50*51.2 mm

31.25*64mm

Resolving power

1600dot/m²

1120dot/m²

800dot/m²

400dot/m²

512dot/m²

input voltage

DC36-48V

DC36-48V

DC36-48V

DC36-48V

DC36-48V

Max.power

480w/m²

350w/m²

240w/m²

120w/m²

160w/m²

Grayscale

65536

65536

65536

65536

65536

refresh frequency

>1KHZ

>1KHZ

>1KHZ

>1KHZ

>1KHZ

Framing frequency

>18HZ

>18HZ

>18HZ

>18HZ

>18HZ

brightness

≥4800cd/m2

≥3360cd/m2

≥2400cd/m2

≥1200cd/m2

≥1536cd/m2

visual angle

>120°

>120°

>120°

>120°

>120°

permeability

56%

>69%

>75%

>75%

>79%

Shell material

Aluminum

Aluminum

Aluminum

Aluminum

Aluminum

Unit direction

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

Standard unit size

1000x256mm

1000x256mm

1000x256mm

1000x256mm

1000x256mm

Resolution / unit

40x10

40x7

40x5

20x5

32x4

weight

14.4kg/m2

11kg/m2

8.76kg/m2

8.76kg/m2

7.64kg/m2

Installation mode

Front&Back

Front&Back

Front&Back

Front&Back

Front&Back

Protection level

IP66

IP66

IP66

IP66

IP66

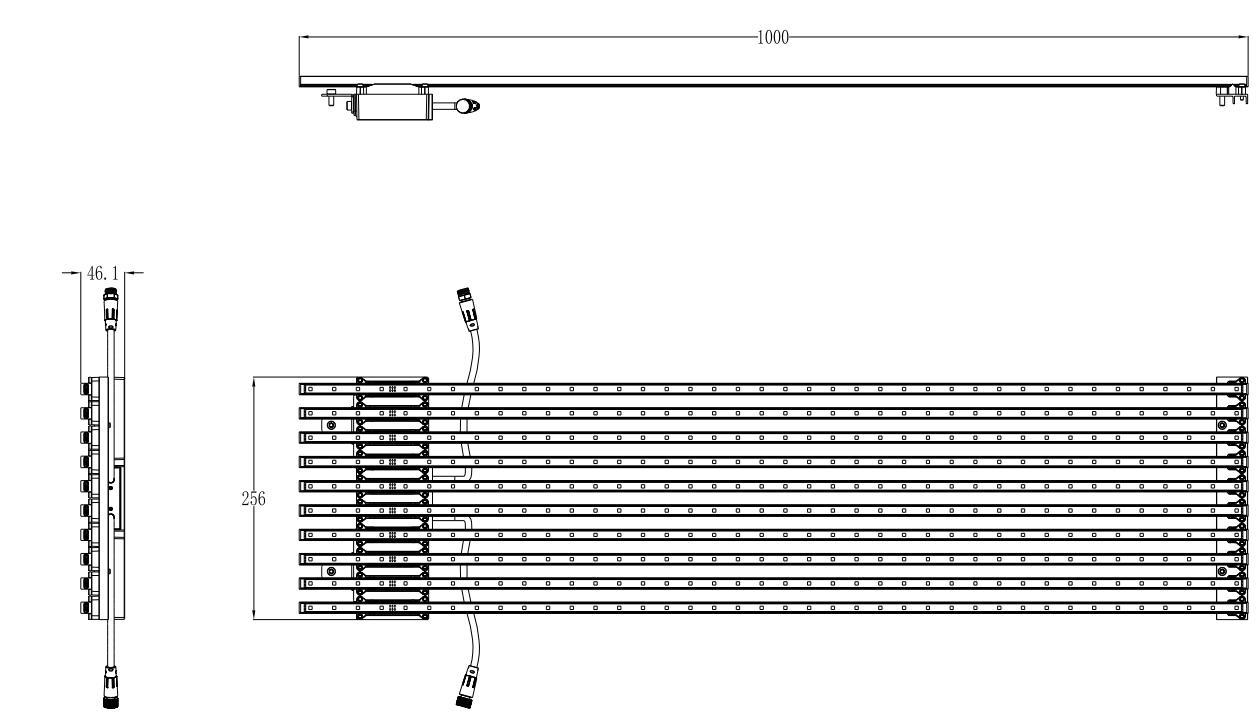

Physical Dimension

   Unit:mm

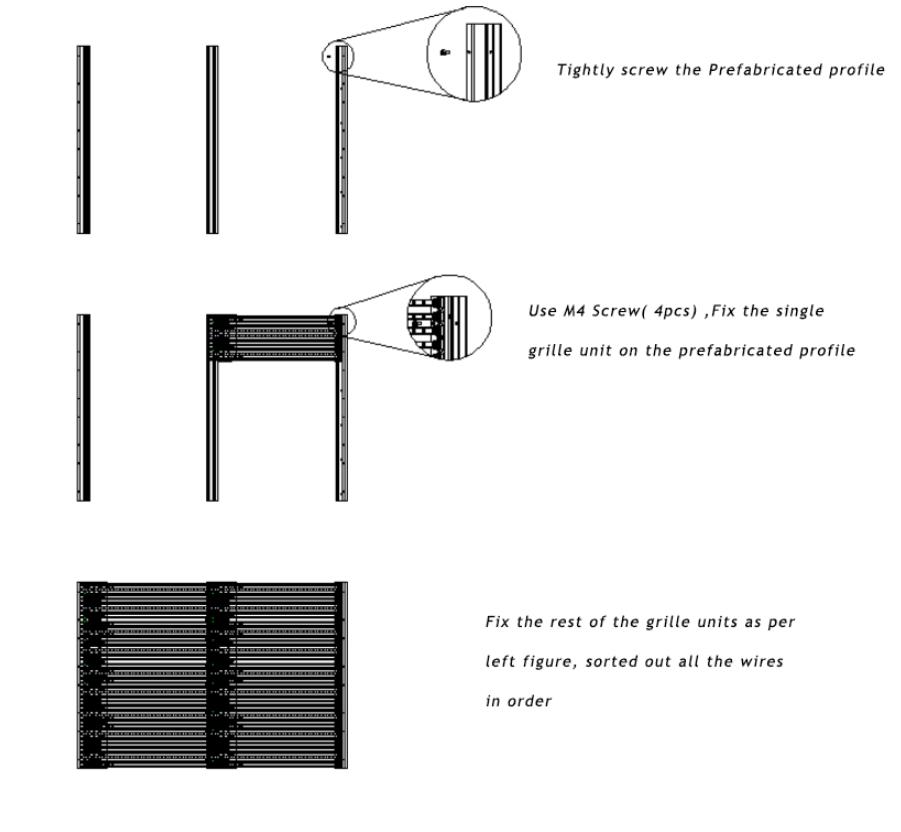

Product installation

 Unit:mm
