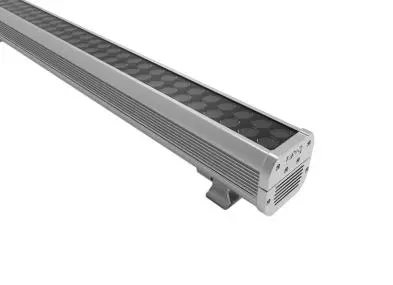

EXC-W80FBH Multi-pixel LED Wall Washer

EXC-W80FBH full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W80FBH can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Professional comb convection heat dissipation design

  • Unique waterproof and breathable design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-7.5m


Specification

Basic Specifications

Color Range

W(2200K-6500K), RGB, RGBW

Light Source

72, 24R+24G+24B, 18R+18G+18B+18W pcs LEDs

Working Voltage

AC 220V

Max. Power Consumption

120W(white), 120W(RGB, RGBW)

Control

DMX512, ON/OFF

Segment

1, 2(RGB, RGBW)

Grey Scale

8bit, 16bit

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

6.0KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

≥70LM/W(White),≥45LM/W(RGBW),≥30LM/W(RGB)

Beam Angle

6°, 10°, 12*22° and other angles optional

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
