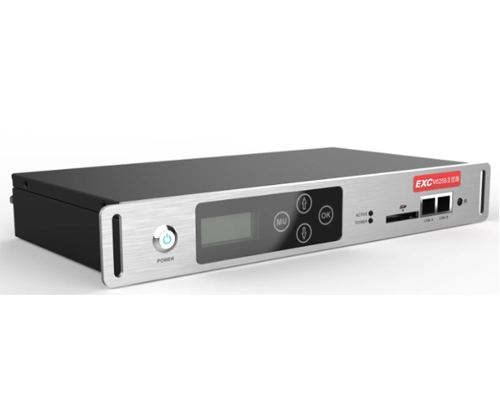

Controller EXC-M520

Name: Controller EXC-M520
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-M520 is the off-line control system we EXC-LED design for medium-scale lighting system,it adopt advanced digital video processing technology ,combined with leading FPGA technology and optimization algorithm model as core,perfectly present the video. With mature network signal transmission technology and distributed cabling system, the system have the advantage of high stability,simple and reliable .The system support standard switch ,EXC-2905T₁ or S880 sub controller and all EXC standard lamps and DMX512 lamps.

Get a quote

Features

Off-line controller,need to work with EXC-2905T₁ or S880 sub controller.
Support Ethernet port and TCP/IP/UDP data communication protocol.
Support parallel connection with switch:decrease the amount of the cascade connection of the controllers to increase he system stability.
Optional to support synchronous control of multiple GPS satellites
Maximum support 60FPS.Support 65536 gray scale.
Support Support DMX512/1900 general protocol and extension DMX512 protocol.
Support independently control of the red,green,blue color.Users will get the mix-white color more effective and easier.
Support automated,timing,preset program files.
SD card storage,support maximum 32G,preset maximum 99 program files.
Support different type of protocol in one system.
Support all series of EXC products.

Specification

Basic Specification
External Size	29114540mm
Shell Material	High quality electro-galvanized steel sheet+power injection+aluminium sheet
Weight	1.8kg
Output port	2Port
Supported Lights	Support all series of EXC products.
Storage Medium	SD card
Communication Port	1000Mbps Ethernet port x2
Communication Protocol	TCP/IP/UDP protocol
Working Condition
Working Temperature	5°C~40°C
Storage Temperature	-20°C~60°C
Protection Rating	IP20
Electrical Specification
Signal Connector	Dedicated EXC connector
Working Voltage	AC 220V
Maximum Wattage	15W

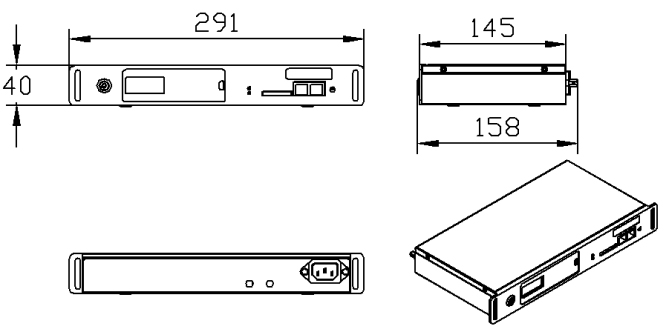

Physical Dimension：

Available Model
Series	Model	Main Features	Working Voltage	Max Wattage	Size
EXC-M520	EXC-M520B	The fourth generation,off-line main controller,two UTP interface,full range of EXC product,IP20,1,000,000pixels,standard configuration,not extensible	AC220V	15W	29114540mm
EXC-M520	EXC-M520B-S Shipped with GPS module	The fourth generation,off-line main controller,two UTP interface,full range of EXC product,IP20,1,000,000pixels,standard configuration,extensible	AC220V	15W	29114540mm

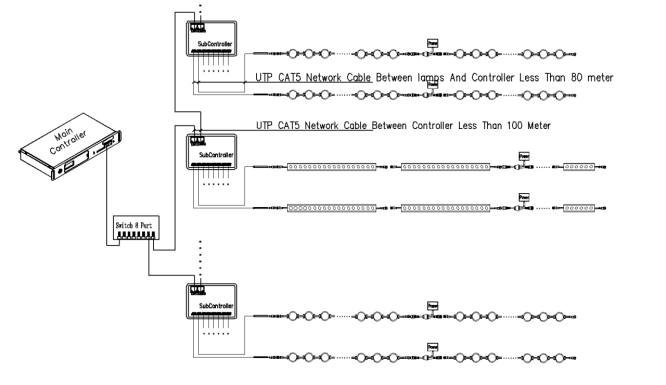

System connection diagram：
