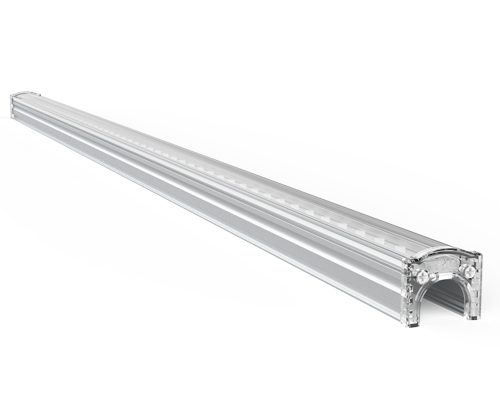

Outdoor Linear Light Contour EXC-U35NAB0

EXC-U35NAB0 full-color series consists of full-color SMD strip lights equipped with an ultra-narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting. They are only 35mm wide. Each strip includes 8 pixels, and each pixel can realize 256 grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.

Specification Optical Parameters of Outdoor Linear Light Contour EXC-U35NAB0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: ≥110°

  • Source Life: 50,000h


Electrical Parameters of Outdoor Linear Light Contour EXC-U35NAB0

  • Working Voltage: DC 24V

  • Rated Power: 9W/12W/15W/18W


Control Parameters of Outdoor Linear Light Contour EXC-U35NAB0

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Outdoor Linear Light Contour EXC-U35NAB0

  • Shell Material: Aluminum alloy

  • Surface Color: Black&White,Other color optional

  • Structure Size: 1000mm x 38mm x 34mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.62Kg


Environmental Parameters of Outdoor Linear Light Contour EXC-U35NAB0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
