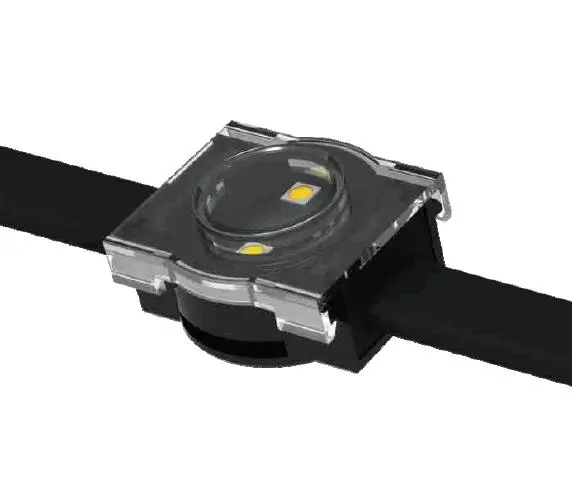

LED Pixel Light EXC-P28GP

EXC-P28GP full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P28GP pixel is a separate lighting pixel, and each pixel can realize 256 grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.


Features

  • Compact design, 11mm thickness

  • The newest generation technology: DMX512 parallel bus design

  • Clip on-off style connection and   anti- pull connection without connector design

  • High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Flexible design ensures 4 kinds of mounting way


Specification

Basic Specifications

Color

W(2200K-6500K), RGB, RGB+W, etc...

Working Voltage

DC12V/5V

Max. Power Consumption

0.6W

Light Source

2 pcs SMD LEDs

CRI

80

Control

DMX512, ON/OFF

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent, Opal, Crystal)

Housing

PC+ABS

Weight

20g

Dimensions

46mm x 28.2mm x 17mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with profiles or steel wire, Front loading buckle installation

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

≥5cd(RGB)

Beam Angle

≥95°

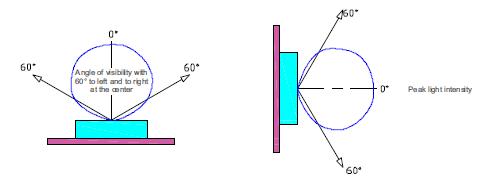

Light Intensity Distribution


Light Intensity Chart





Physical Dimension

Unit:mm






Installation Diagram

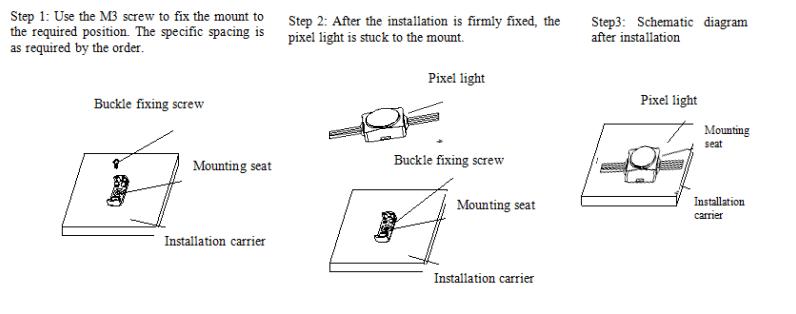

1.Mount by clip

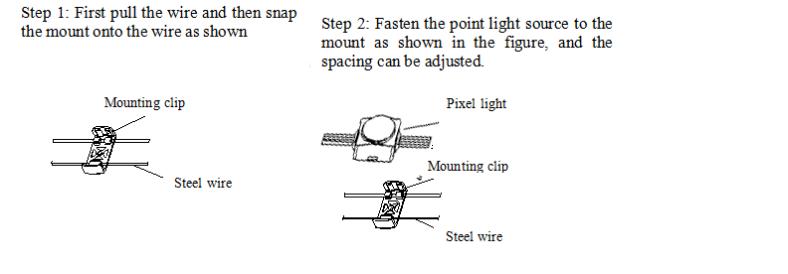

2.Mount by steel wire




System connection diagram:

1、Host controller should connect with slave controller. Working voltage for controllers are AC220V.

2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.

3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.

4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.

Online Controlling System Diagram




Offline Controlling System Diagram



Accessories :



1: Female and Male Connector( Connect to first dot light for signal transmission)




2: Y Shape Connector(For power Distribution)





3: Interconnection Cable(1.3M,3M,5M is standard length)



4: End Cap
