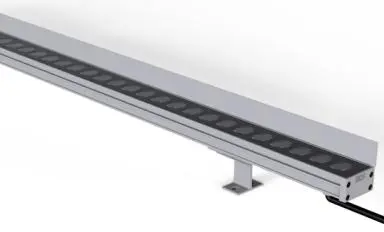

EXC-W45CRL Multi-pixel LED Wall Washer

EXC-W45CRL full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W45CRL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Patented comb-like convection design ensure better heat dissipation

  • Low thermal resistance path heat dissipation design

  • Design of unique waterproof and ventilation

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-5m


Specification

Basic Specifications

Color Range

RGBW, RGB, W(2200K-6500K)

Light Source

18/24/36 pcs LEDs

Working Voltage

DC 24V

Max. Power Consumption

24W/36/48W(white), 54/60W(RGB), 48W(RGBW)

Control

DMX512, ON/OFF

Segment

1

Grey Scale

8bit, 16bit

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

2.6KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

75LM/W(white), 35LM/W(RGB), 40LM/W(RGBW)

Beam Angle

3030/3535:(12°、17°、12*22°、16*50°)

CREE 5050:(20°、30°、45°、60°、20*40°)

and other beam angle available

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
