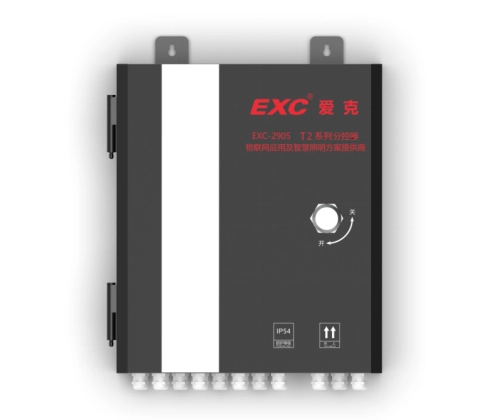

Controller EXC-2905T2

The EXC-2905T2 controller is designed for large and medium-sized outdoor lighting engineering project.Using advanced digital video processing technology and FPGA technology,optimize the algorithm model is the core to achieve perfect video performance,Supporting EXC off-line medium light controller EXC-5000, large online EXC-6000 lighting controller series, super control EXC-10000 controller, 8 port supporting the design of smart city cluster light Internet control system of the controller.the controller is used to optimize the network transmission protocol, supports standard fast LAN connection, very flexible.EXC-2900T1 controller is matched with the switch of supporting the use of the lighting system network, can also support the standard exchange unit and use of the existing network or LAN resources.

Features

  • Sub-Controller,Need work with main controller

  • 8 output port,max 512 pixels

  • Support Ethernet Interface and TCP/IP/UDP protocol

  • Support parallel connection with switch:decrease the amount of the cascade connection of the controllers to increase the system stability

  • Support GPS synchronize/BTS synchronize control system

  • Maximum support 60 FPS.support 65536 grey scale

  • Supoort standard DMX512/1990 protocol and expend DMX512 protocol

  • Support independently control of the Red, Green,Blue color.Users will get the mix-white color.more effective and easier

  • Support automated,timing,preset program files

  • Support different type of protocol in one system

  • More effective protection circuit to protect each ports of the controller

  • Support all series of EXC products


Specification

Basic Parameters

External Size

249*305*76.7mm

Shell Material

(High quality electro-galvanized steel sheet+power injection)

Weight

2kg

Output port

Eight

Support light fixture

EXC all series and standard DMX512

Storage Medium

/

Communication port

1000Mbps Ethernet port x2

Communication Protocol

TCP/IP/UDP protocol

Working Condition

Working Temperature

-20°C TO 55°C

Storage Temperature

-40°C TO 70°C

Protection Rating

IP54

Electric Parameters

Signal Connector

Dedicated EXC connector

Working Voltage

AC 220V

Maximum Wattage

15W

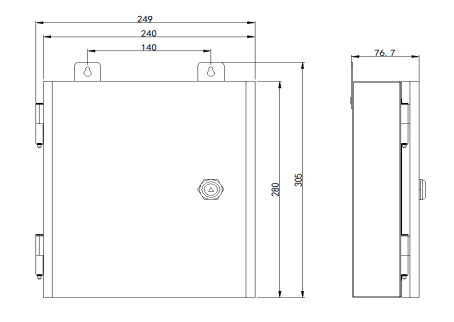

Physical Size:

Physical Size


Available Model

Series

Model

Main Features

Working Voltage

Max Wattage

Size

EXC-2905T2

EXC-2905T2-E1P007A

The First generation、waterproof、Indoor,Serial,IP54,4096

AC220V

15W

249*305*76.7mm

EXC-2905T2-E1P007B

The Second generation、waterproof、Indoor,Parallel ,IP54,4096

AC220V

15W

249*305*76.7mm

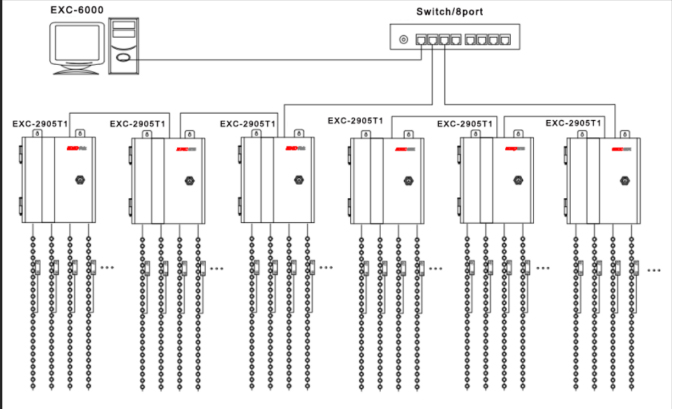

System Diagram Wire:

System Diagram Wire
