Outdoor Linear Light Contour EXC-U20CAB2

Name: Outdoor Linear Light Contour EXC-U20CAB2
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

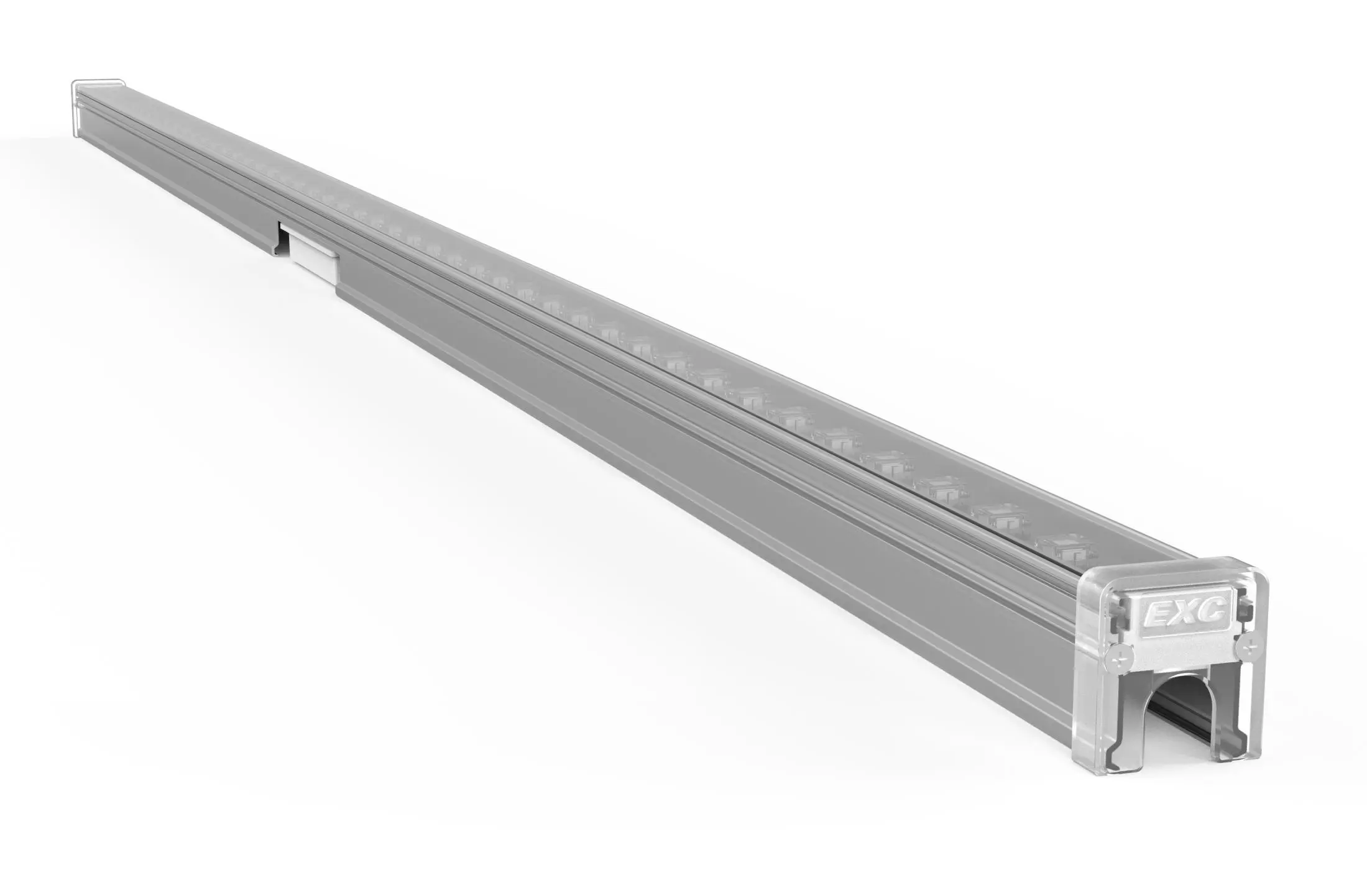

EXC-U20CAB2 Full color series consists of white SMD strip lights equipped with an ultra-narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting. They are only 23.6mm wide. Each strip includes 8 pixels, and each pixel can realize 256 grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.

Get a quote

Features

The newest generation technology: DMX512 parallel bus design
Full-sealed filling waterproof design by German imported glue
Aluminum alloy lamp body with low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design
Certifications including CCC, ETL and CE

Specification

Basic Specifications
Color Range	RGB, RGBW, RGB+W
Light Source	36/48(RGB, RGBW), 24+24/30+30(RGB+W) pcs LEDs
Working Voltage	DC 24V
Max. Power Consumption	RGB(10W/12W), RGBW(15W/18W), RGB+W(12W/15W)
Control	DMX512
Segment	1
Grey Scale	8bit, 16bit
Source Life	50,000 h
RDM	Optional
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Housing	High Strength Aluminum
Cover	PC
Weight	0.32KG
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Efficiency flux	35LM/W
Beam Angle	≥105°

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
