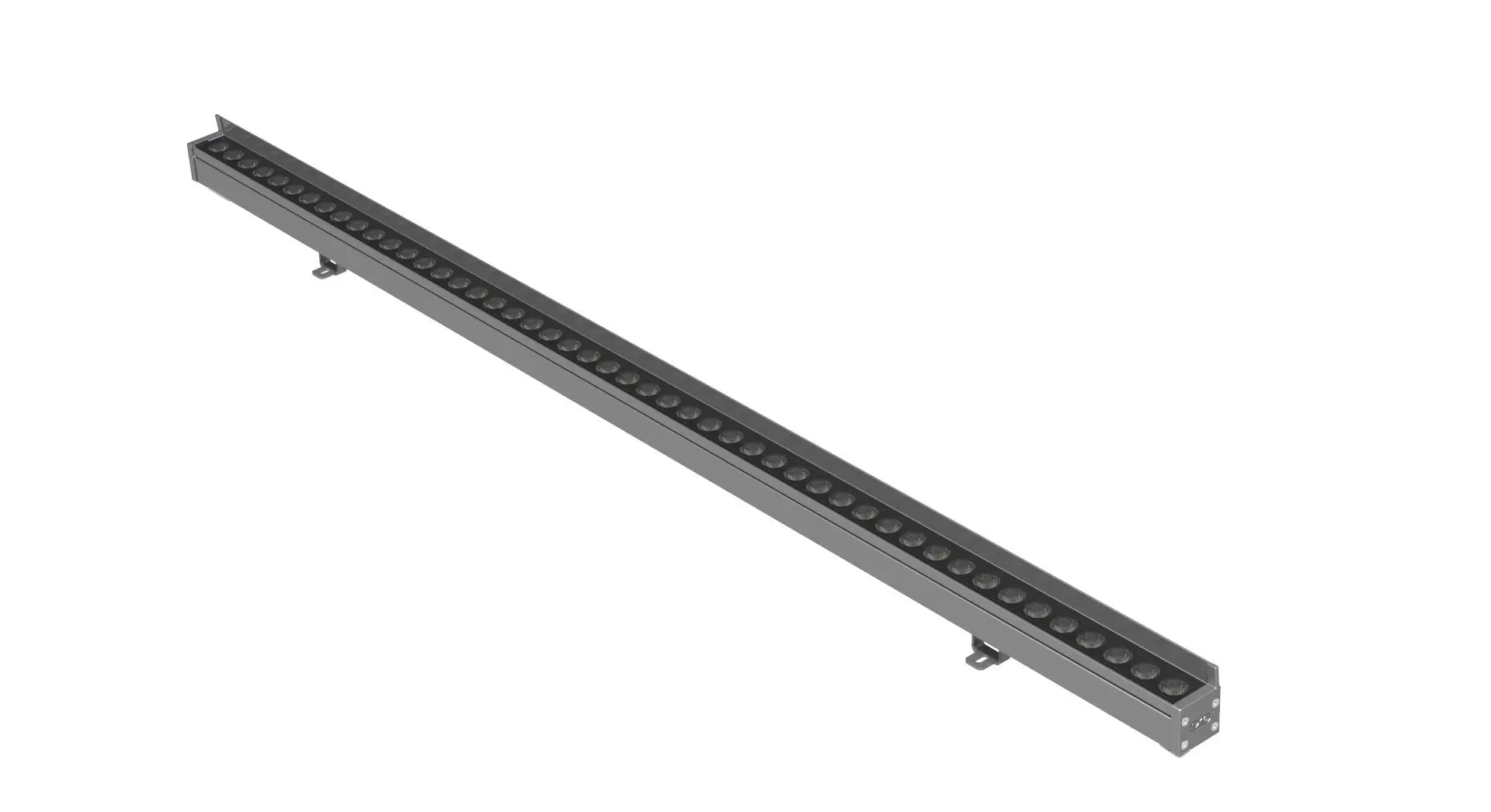

EXC-W30ARL full color series consists of strip-shaped small-power wall washer lights with
high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc. There are many options for lamp length specifications available.
Professional comb convection heat dissipation design
Unique waterproof and breathable design
Low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design
Projection distance: 0.5-1m
Basic Specifications | |
Color Range | W(2700K-6500K),RGB,RGB+W,RGBW |
Light Source | 36/48pcs LEDs |
Working Voltage | DC 24V |
Max. Power Consumption | 10W/12W |
Control | DMX512 |
Segment | 1/4/8 |
Grey Scale | 8bit, 16bit |
Source Life | 50,000 h |
RDM | Optional |
LED chip Brand | Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
Housing | High Strength Aluminum |
Cover | Tempered glass |
Weight | 0.99KG |
Working Temperature | -40°C to 60°C |
Storage Temperature | -40°C to 70°C |
Protection Rating | IP66 |
Efficiency flux | ≥70LM/W(White),≥45LM/W(RGBW),≥30LM/W(RGB) |
Beam Angle | 25*45°/20° |
Host Controller | EXC-5200 |
Slave Controller | EXC-2905T1 |
Signal Cable | EXC-LED outdoor special cable |
