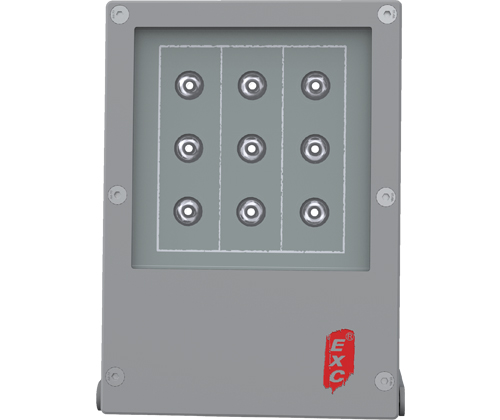

LED Flood Light Medium EXC-B120TBL

EXC-B120TBL full-color series consists of ultra-thin flat-panel flood lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Specification Optical Parameters of LED Flood Light Medium EXC-B120TBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W, RGB

  • Beam Angle: 20°, 30° and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Flood Light Medium EXC-B120TBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 15W


Control Parameters of LED Flood Light Medium EXC-B120TBL

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters LED Flood Light Medium EXC-B120TBL

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White,Other color optional

  • Structure Size: 168mm x 124mm x 17mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.6kg


Environmental Parameters of LED Flood Light Medium EXC-B120TBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
