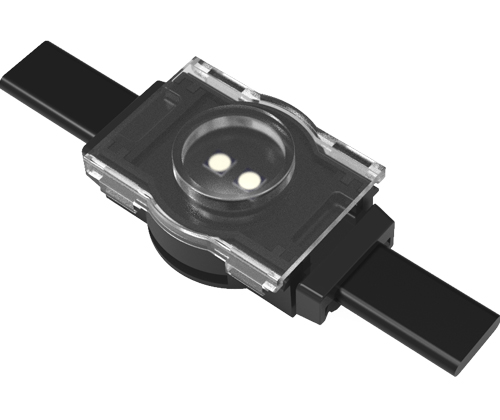

LED Pixel Light EXC-P28GP

EXC-P28GP full-color series is a full-color LED series string LED pixel, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P28GP pixel is a separate lighting pixel, and each pixel can realize 256 grades grayscale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel Light 1W EXC-P28GP

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, W,etc

  • Beam Angle: 120degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel Light 1W EXC-P28GP

  • Working Voltage: DC12/5V

  • Rated Power: Maximum:0.6W


Control Parameters of LED Pixel Light 1W EXC-P28GP

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 1W EXC-P28GP

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 46mm x 28mm x 17mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 20g


Environmental Parameters of LED Pixel Light 1W EXC-P28GP

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
