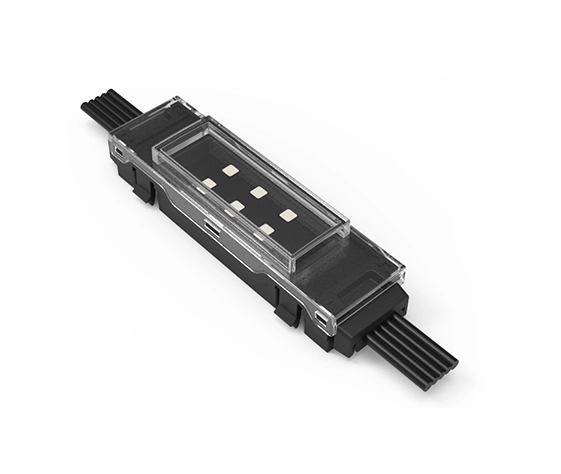

LED Pixel Light EXC-P21AP1

EXC-P21AP1 full-color series consists of professional ultra-narrow chip LED pixel lights specially designed by EXC for outdoor high-rise landscape lighting. It adopts top-level optical vision angle design, super remote multi-color and visual

brightness consistency technology and close range anti-glare design. Each pixel is a separate four-primary lighting pixel, and each pixel can realize 8/16bit grades gray scale changing; they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting; the pixel pitch can be customized; the installation methods are various.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Integrated clip-on endless connection

  • Fully sealed and waterproof design with high thermal conductive adhesive imported from Germany

  • Special outdoor lightning and ESD protection


Specifications

Basic Specifications

Color

W(2200K-6500K), RGB, RGB+W, RGBW, etc...

Working Voltage

DC15V/24V

Max. Power Consumption

0.9W/1.2W/1.5W/1.8W

Light Source

4/6pcs SMD LEDs

CRI

80

Control

DMX512, ON/OFF

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent)

Housing

PC+ABS

Weight

25g

Dimensions

80mm x 25mm x 18.5mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with Aluminum profiles

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

20cd(W), 7.5/12cd(RGB), 15cd(RGBW)

Beam Angle

105°
