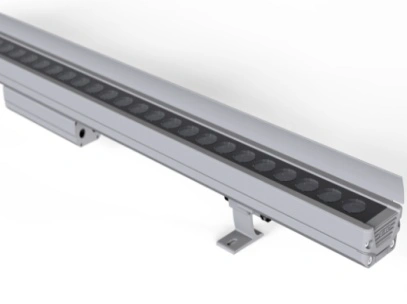

EXC-W55CRH Multi-pixel LED Wall Washer

Name: EXC-W55CRH Multi-pixel LED Wall Washer
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-W55CRH full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W55CRH can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.

Get a quote

Features

The newest generation technology: DMX512 parallel bus design
Patented comb-like convection design ensure better heat dissipation
Low thermal resistance path heat dissipation design
Design of unique waterproof and ventilation
Outdoor lighting protection and electrostatic discharge (ESD) protection design
Projection distance: 1-5m

Specification

Basic Specifications
Color Range	RGBW,RGB, W(2200K-6500K)
Light Source	24/36 pcs LEDs
Working Voltage	AC 220V
Max. Power Consumption	36/48W(white), 54/60W(RGB), 48W(RGBW)
Control	DMX512, ON/OFF
Segment	1
Grey Scale	8bit, 16bit
Source Life	50,000 h
RDM	Optional
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Housing	High Strength Aluminum
Cover	Tempered glass
Weight	2.6KG
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Efficiency flux	≥70LM/W(White),≥45LM/W(RGBW),≥30LM/W(RGB)
Beam Angle	12°、1222°、1650°，and other beam angle available

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
