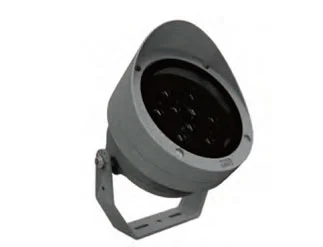

Special Light EXC-BC155BRH

EXC-BC155BRH Light tree lamp are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture can be used for accent lighting or flood lighting, such as ancient buildings,landscape garden,etc.

Features

The newest generation technology: DMX512 parallel bus design

A new generation of structural waterproof design

High strength aluminum and low thermal resistance path cooling design

High reliability modularization design

Adjustable angle 0 degree ~15 degree, glass surface tilt 5 degree design

Outdoor lighting protection and electrostatic discharge (ESD) protection design

Load safety design

Projection distance: 1-5m


Specifications

Basic Specifications

Color Range

W(2200K-6500K)

Working Voltage

AC 220V

Max. Power Consumption

18W(R+G+B, RGBW), 24W(W, R+G+B)

Light Source

9(W, RGBW), 3+3+3(R+G+B)PCS High Power LEDs

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

CRI

80

Control

DMX512, ON/OFF

Source Life

50,000 h

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

2.33Kg

Dimensions

155mm x 155mm x 218mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with screws

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

65LM/W

Beam Angle

W-3030P7: 10°/15°/20°/30°/45°/60°/80°
