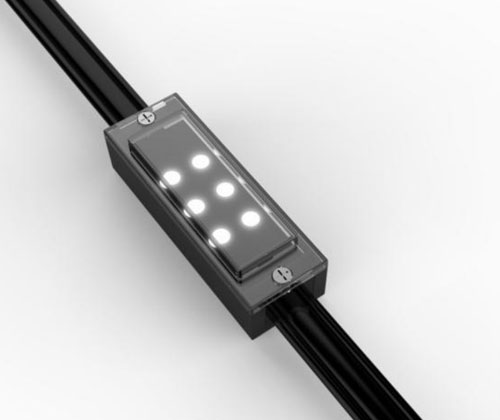

LED Pixel Light EXC-P20DP

EXC-P20DP0 full-color series is a full-color LED series string LED pixel, which is designed for outdoor landscape lighting by EXC-LED. Each EXC-P20DP pixel is a separate lighting pixel, and each pixel can realize 8bit/16bit grades grayscale changing. They can be used for indoor and outdoor applications, such as building facades, shopping malls, celebration ceremony or party decorations. Customized pixel pitch, and easy installation.

Specification Optical Parameters of LED Pixel Light 2W EXC-P20DP

LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

Color:  RGB, RGB+W, etc

Beam Angle: 120degree,Open beam and other angles optional

Source Life: 50,000h


Electrical Parameters of LED Pixel Light 2W EXC-P20DP

Working Voltage: DC 24V

Rated Power: Maximum 1.8W


Control Parameters of LED Pixel Light 2W EXC-P20DP

Control Method: DMX512/On off

Gray Scale: 8Bits/16Bits

Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 2W EXC-P20DP

Shell Material: PC

Surface Color: Black&White,Other color optional

Structure Size: 60mm x 20.5mm x 17mm (L x W x H, exclude Mounting Bracket)

Total Weight: 45g


Environmental Parameters of LED Pixel Light 2W EXC-P20DP

Working Temperature: -40°C to 50°C

Storage Temperature: -40°C to 65°C

Protection rating: IP66

Application environment: Outdoor
