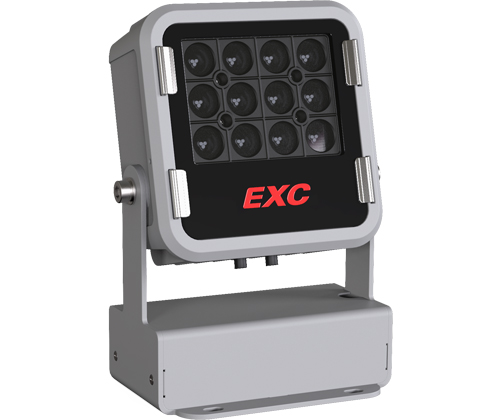

EXC-B145CBH full-color series are high power outdoor landscape flood lighting fixtures with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades grayscale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.
LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram
Color: W, RGB, RGBW
Beam Angle:
W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°
RGB-3030P7/CREE XP series: 6°/8°/10°/15°/20°/30°/45°/60°/80°
3535: 30°/45°/60°/80°
5050: 17°/20°/30°/45°/60°
Source Life: 50,000h
Working Voltage: DC 24V
Rated Power: Maximum 24-36W
Control Method: DMX512 /ON OFF
Gray Scale: 8Bits/16Bits
Control System: EXC-ALL the lights control system
Shell Material: High Strength Aluminum
Cover: Tempered glass
Surface Color: Black&White, Other colors optional
Structure Size: 144mm x148mm x 65mm (L x W x H, exclude Mounting Bracket)
Total Weight: 1.09kg
Working Temperature: -40°C to 50°C
Storage Temperature: -40°C to 70°C
Protection rating: IP66
Application environment: Outdoor
