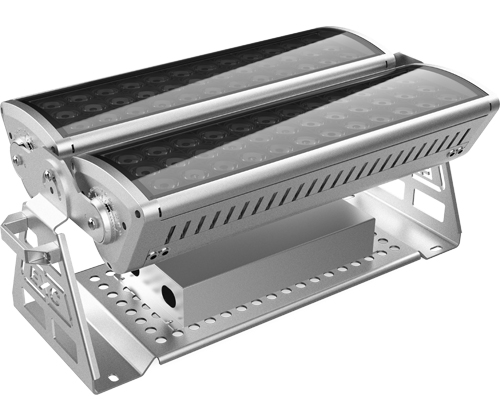

Narrow Beam Flood Light EXC-B175BBH

EXC-B175BBH series consists of triangular full-color flood lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Specification Optical Parameters of Narrow Beam Flood Light EXC-B175BBH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: 2200-6500K, RGB, RGBW

  • Beam Angle: W-3030P7:8°/10°/15°/20°/30°/45°/60°/80°  RGB-3030P7/CREE XP SERIEL: 6°/8°/10°/15°/20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°  5050:17°/20°/30°/45°/60°

  • Source Life: 50,000h


Electrical Parameters of Narrow Beam Flood Light EXC-B175BBH

  • Working Voltage: AC220V

  • Rated Power: Maximum 200W/240W/300W


Control Parameters of Narrow Beam Flood Light EXC-B175BBH

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Narrow Beam Flood Light EXC-B175BBH

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White,Other color optional

  • Structure Size: 624mm x 371.5mm x 288mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 18,86kg


Environmental Parameters of Narrow Beam Flood Light EXC-B175BBH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
