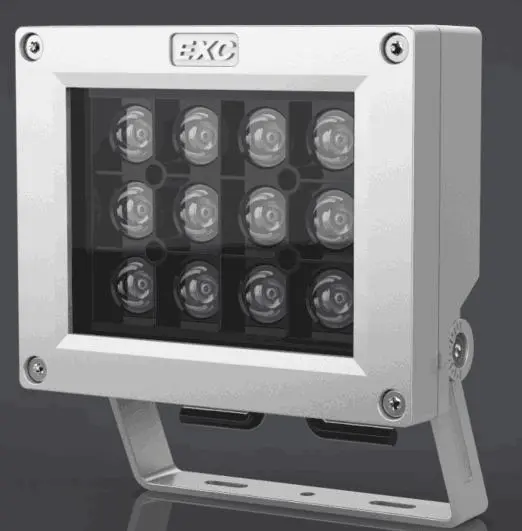

EXC-B150BBL full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.
The newest generation technology: DMX512 parallel bus design
High strength aluminum and low thermal resistance path cooling design
High reliability modularization design
Outdoor lighting protection and electrostatic discharge (ESD) protection design
Load safety design
Projection distance: 3-15m
Basic Specifications | |
Color Range | W, RGB, RGBW |
Working Voltage | DC 24V |
Max. Power Consumption | 9W/12W/18W/24W/36W |
Light Source | 4/9/12 PCS High Power LEDs |
LED chip Brand | Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
CRI | 80 |
Control | DMX512, ON/OFF |
Source Life | 50,000 h |
Housing | High Strength Aluminum |
Cover | Tempered glass |
Weight | 1.6Kg |
Dimensions | 148mm x 175.5mm x 68mm (L x W x H, exclude Mounting Bracket) |
Installation | Installation with screws or adhesive |
Working Temperature | -40°C to 60°C |
Storage Temperature | -40°C to 70°C |
Protection Rating | IP66 |
Efficiency flux | ≥60LM/W(White),≥40LM/W(RGBW),≥30LM/W(RGB) |
Beam Angle | 6°, 10°, 30°, 80°, and other angles optional |
Host Controller | EXC-5200 |
Slave Controller | EXC-2905T1 |
Signal Cable | EXC-LED outdoor special cable |
