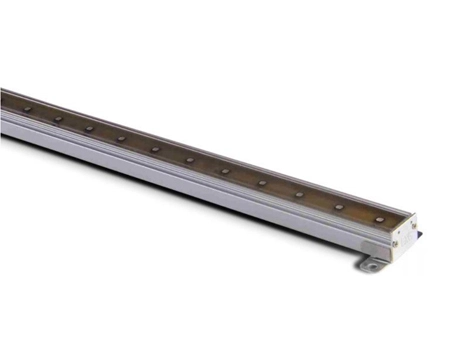

Outdoor Linear Light Contour EXC-U20H

Name: Outdoor Linear Light Contour EXC-U20H
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-U20H full color series products are extra-narrow LED linear light with aluminum shell for outdoor landscape decoration. The width of EXC-U20H is only 20mm, each one with 8 pixels and each pixel can realize 256 grade gray scale color changing. EXC-U20H can be applicable for super large area displaying or outline the building. lt also can be used to decorate facade inside and outside, even small area wall-was hing effect.

Get a quote

Features of EXC-U20H LED Linear light

Only 20mm width, very compact design
The newest generation technology: DMX512 parallel bus design
Full-sealed filling waterproof design by German imported glue
Aluminum alloy lamp body with low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design

Specifications of EXC-U20H LED Linear light

Basic Specifications
Color Range	RGB
Light Source	48 pcs SMD 5050 LEDs
Source Life	50,000 h
Material	High strength aluminum alloy/PC lampshade
Weight	420g
Environmental Specifications
Working Temperature	-40°C to 50°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Electrical Specifications
Working Voltage	DC 24V
Power Consumption	9W/m
Optical Specifications
Central light intensity	Mixed white:120cd;（data refer to full color light source)
Beam Angle	≥110°
Controller
Main Controller	EXC-M630D、EXC-6000、EXC-8000、EXC-10000、EXC-ELAN
Sub Controller	EXC-2905T2
