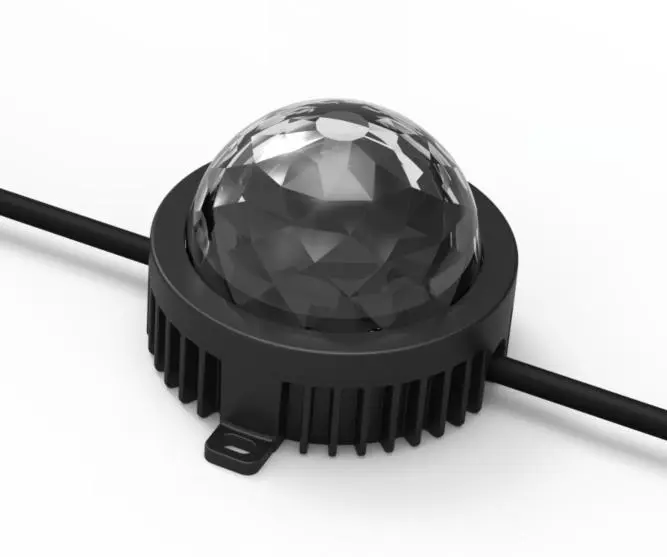

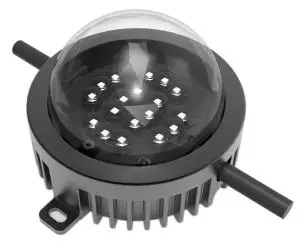

LED Pixel Light EXC-P85DM

EXC-P85DM series are a  string LED pixel light with extruded aluminum alloy housing, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P85GM pixel is a separate lighting pixel, and each pixel can realize 8bit/16bit  grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.


Feature

  • The newest generation technology: DMX512 parallel bus design

  • Clip on-off style connection and   anti- pull connection without connector design

  • High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design


Specification

Basic Specifications

Color

W(2200K-6500K), RGB, RGB+W, RGBW, etc...

Working Voltage

DC24V

Max. Power Consumption

3W/4W/5W

Light Source

12/18/24pcs SMD LEDs

CRI

80

Control

DMX512, ON/OFF

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent, Opal, Crystal)

Housing

High strength extruded aluminum(others:PC+ABS)

Weight

250g

Dimensions

105mm x 105mm x 62.5mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with screws or adhesive

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

54/81cd(W), 30cd(RGB), 38cd(RGBW)

Beam Angle

≥110°
