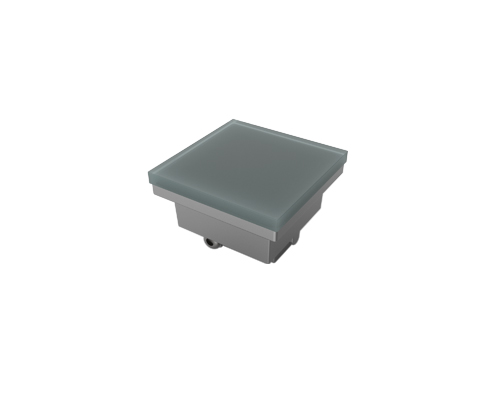

Special Light EXC-SMG

EXC-SMG is a High strength square lighting fixture mainly designed for landscape lighting by EXC-LED, module design, can be any combination and single use. This products adopt  extruded aluminum alloy housing and tempered glass, with double waterproof design, to meet the IP67 application requirements. Each EXC-SMG is a separate lighting pixel; Particularly suitable for garden square, pedestrian street, courtyard, dance hall and other personalized application, can be also used for embedded wall lighting..

Specification Optical Parameters of Special Light EXC-SMG

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2700K-6500K), RGB, RGB+W, etc.

  • Beam Angle: 120°degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Special Light EXC-SMG

  • Working Voltage: DC 24V

  • Rated Power: Maximum 3W


Control Parameters of Special Light EXC-SMG

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Special Light EXC-SMG

  • Shell Material: High Strength Aluminum

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 100mm x 100mm x 65mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.7Kg


Environmental Parameters of Special Light EXC-SMG

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
