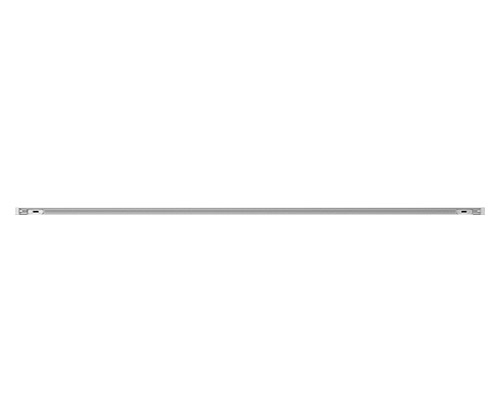

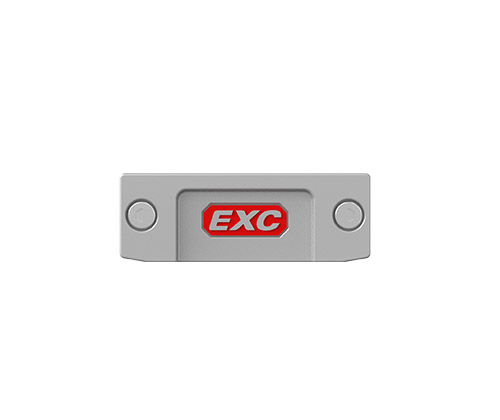

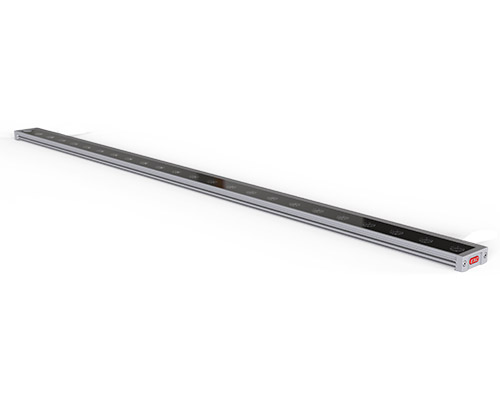

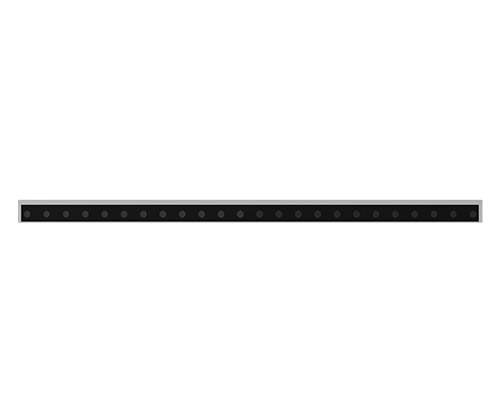

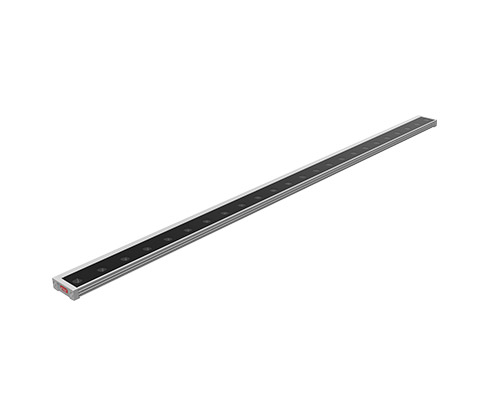

Linear Wall Washer Light Outdoor EXC-W50FBL

EXC-W50FBL full color series consists of strip-shaped small-power wall washer lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting.It could be used for illumination in specific areasor landscape wash lighting, applicable on building facades, bridges, stages, etc. There are many options for lamp length specifications available.


Get a quote

Features of Linear Wall Washer Light Outdoor EXC-W50FBL

  • Professional comb convection heat dissipation design

  • Unique waterproof and breathable design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD protection design

  • Projection distance: 1-3m


Specification Optical Parameters of Linear Wall Washer Light Outdoor EXC-W50FBL

  • LED chip Brand : Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

  • Color Range: W(2700K-6500K)

  • Beam Angle: 20°、25*45°、30°、45°、60°

  • Source Life: 50,000h



Electrical Parameters of Linear Wall Washer Light Outdoor EXC-W50FBL

  • Working Voltage: DC 24V

  • Max. Power Consumption: 36W



Control Parameters of Linear Wall Washer Light Outdoor EXC-50FBL

  • Control Method: DMX512

  • Gray Scale: 8/16BIT



Structural Parameters of Linear Wall Washer Light Outdoor EXC-W50FBL


  • Shell Material: High Strength Aluminum

  • Cover: Tempered Glass

  • Total Weight: 1.357KG


Environmental Parameters of Linear Wall Washer Light Outdoor EXC-W50FBL


  • Working Temperature: -40°C to 60°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66
