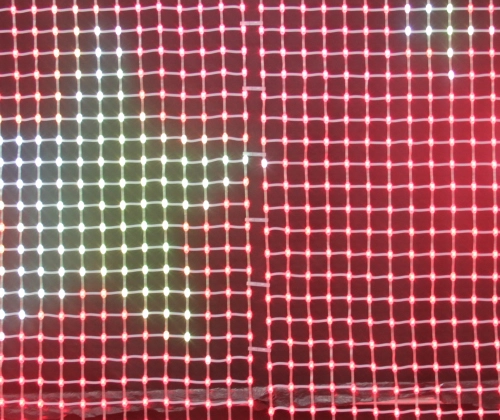

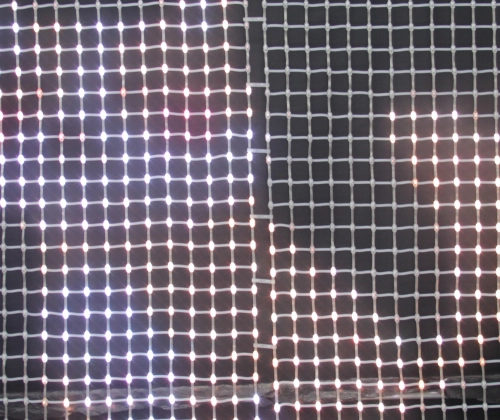

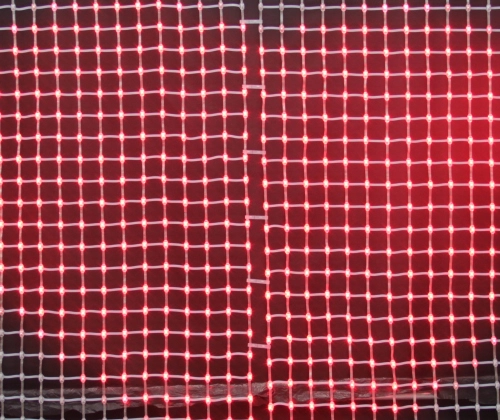

Smart Mesh Grille Light A Project Series: EC-NE05/NE08/NE10

Smart Mesh Grille Light A project series products are specially designed for outdoor decorative lighting projects. The design concept is to adopt a hollow structure between pixel points and between light strings, which removes redundant parts. Besides, as the display is separated from the control, the products enjoy simple characteristic and present sound transparency. For its transparent structure, the lights themselves won’t block light, catering exclusively to commercial advertising inside and outside in a fashionable and aesthetic manner.

Features of Smart Mesh Grille Light A Project Series: EC-NE05/NE08/NE10

  • Slight and thin, mainly used in commercial environment; creative and aesthetic;

  • Adopt customized outdoor transparent rubber cable, produced via automated machines;

  • Every pixel point includes LED chip and IC; single point single control instead of being controlled externally;

  • Every pixel point is with optical-grade PC diffuse reflection cover; support 360° lighting effect; IP66;

  • With transparency reaching to 95%; can block least light from outside;

  • Every pixel point, its three primary colors support 256 gray scale;

  • Support various graphic change effect such as jump, gradient, monochrome, full color, pattern, animation and text;

  • Applying environment: park, square, yard, shopping center, hospitality, clubhouse, building wall, guardrail etc.;

  • Installation: hoisted, wall mounted, and glass installation according to the site conditions.

Technical Parameters of Smart Mesh Grille Light A Project Series: EC-NE05/NE08/NE10

Available models

EC-NE05

EC-NE08

EC-NE10

Input voltage

DC12V

DC12V

DC12V

Maximum power

≤420W

≤420W

≤216W

Pixel pitch

5cm

8cm

10cm

Module width

1m

1m

1m

Module quantity

20 string/m

12 string/m

10 string/m

Module length (can be customized)

≤10m

≤16m

≤20m

Lamp beads

≤200pics/string

≤200pics/string

≤200pics/string

LED light source details

SMD3535RGB with IC inside

SMD3535RGB with IC inside

SMD3535RGB with IC inside

LED chip brands

San’an/Epistar

San’an/Epistar

San’an/Epistar

Color temperature

RGB

RGB

RGB

Beam angle

360°

360°

360°

Gray scale

256

256

256

Refresh rate

>30Hz/sec

>30Hz/sec

>30Hz/sec

Protecting rate

IP66

IP66

IP66

Work temperature

-30℃~+50℃

-30℃~+50℃

-30℃~+50℃

Light source life

≥50000H

≥50000H

≥50000H

Control

SPI control

SPI control

SPI control

Installation

hoisted, wall mounted, and glass installation according to the site conditions.

hoisted, wall mounted, and glass installation according to the site conditions.

hoisted, wall mounted, and glass installation according to the site conditions.

Product certificates

ETL  CE  ROHS

ETL  CE  ROHS

ETL  CE  ROHS
