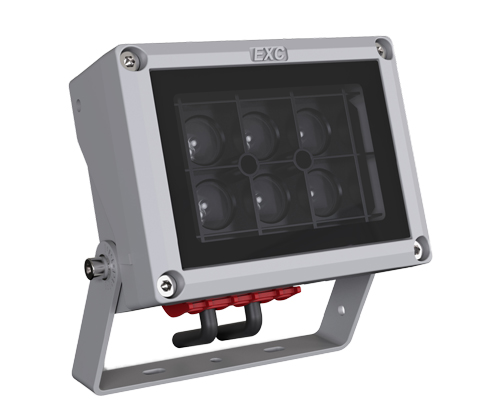

LED Flood Light Medium EXC-B125BBL

EXC-B125BBL full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.

Get a quote

Specification Optical Parameters of LED Flood Light Medium EXC-B125BBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W, RGB, RGBWW

  • Beam Angle: 6°, 10°, 30°, 80°, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Flood Light Medium EXC-B125BBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 12W /18W


Control Parameters of LED Flood Light Medium EXC-B125BBL

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Flood Light Medium EXC-B125BBL

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White,Other color optional

  • Structure Size: 125mm x 95mm x 51mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 1.09kg


Environmental Parameters of LED Flood Light Medium EXC-B125BBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
