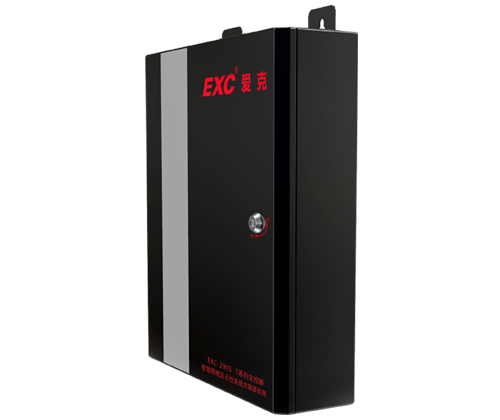

Controller EXC-2905T1

The EXC-2905T1 controller is designed for large and medium-sized outdoor lighting engineering projects. Using advanced digital video processing technology and FPGA technology, optimize the algorithm model is the core to achieve perfect video performance, Supporting EXC off-line medium-light controller EXC-5200, large online EXC-6000 lighting controller series, super control EXC-10000 controller, 8 port supporting the design of smart city cluster light Internet control system of the controller. the controller is used to optimize the network transmission protocol, supports standard fast LAN connection, very flexible.EXC-2905T1 controller is matched with the switch of supporting the use of the lighting system network, can also support the standard exchange unit and use of the existing network or LAN resources.

Specification Optical Parameters of Controller EXC-2905T1

  • Control Method: EXC full series lighting fixture and DMX512 standard protocol lighting fixture

  • Output Channel: 8 LED with the load output port

  • Pixel Control: 8x512 pixel

  • Communication Protocol: TCP/IP

  • Communication Port: 1000Mbps ethernet portx2

  • Storage Medium: N/A

  • Online Play: Support

  • Wi-Fi Sync: Support


Electrical Parameters of Controller EXC-2905T1

  • Working Voltage: AC 220V

  • Rated Power: 15W

  • CONTROL PARAMETERS

  • Control Method: DMX512

  • Gray Scale: 8Bits/12Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Controller EXC-2905T1

  • Shell Material: High-quality electro-galvanized steel sheet+powder injection

  • Surface Color: Black

  • Structure Size: 249*305*76.7mm

  • Total Weight: 2.2kg

  • Signal Connector: Dedicated EXC Connector

  • Standard Accessories: AC power cord x1


Environmental Parameters of Controller EXC-2905T1

  • Working Temperature: -30°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Humidity Range: 0%-90%

  • Protection Rating: IP5X
