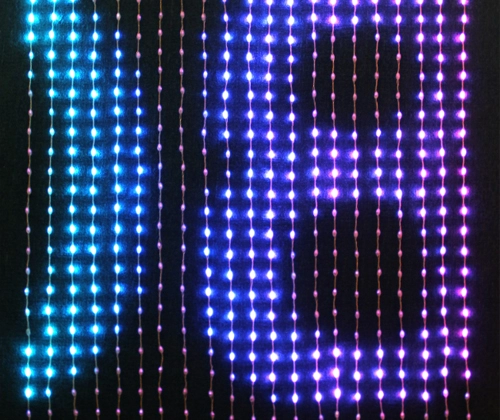

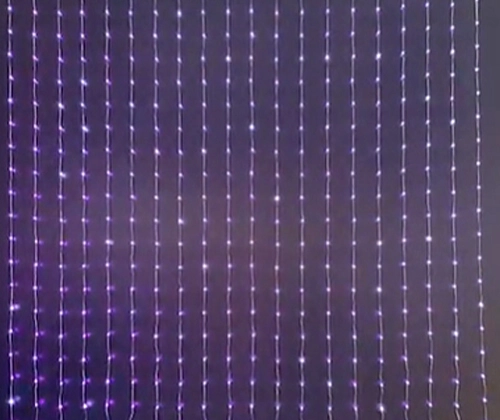

Smart LED Curtain Screen EC-PE05/PE08/PE10

Smart led curtain screen-SPI series is designed by Ecolor for outdoor engineering decorative lighting.The product design concept is using hollow light string and removing the redundant part;between the pixels and light string is transparent hollow structure,adding the display and control separation,which makes the product with good permeability and does not affect the internal space daylighting,for media advertising and commercial indoor and outdoor applications to provide creative and artistic effect display.

Features of Smart LED Curtain Screen EC-PE05/PE08/PE10

  • Structure design is light and thin,specially designed to provide creative display and artistic effect display for commercial decoration atmosphere applications;

  • Each pixel is packaged with lamp bead chip and IC in 3535 lamp bead to realize single-point signle-control function;

  • Good permeability,up to 92%,and does not affect the lighting of the internal space;

  • Realize graphic change effects such as transition,gradient,monochrome,full-color,pattern,animation,text,etc;

  • It is made of professionally customized outdoor transparent wires combined with a new automated process;

  • Each light point is fully covered with an optical-grade PC diffuse reflector lampshade to achieve a 360-degree luminous effect and reach the IP66 protection level;

  • Each pixel and achieve 256 levels of grayscale display;

  • Application scenarios:parks,squares,courtyards,shopping centers,hotels,building walls,guardrails,etc.

Technical Specification of Smart LED Curtain Screen EC-PE05/PE08/PE10

Product model

EC-PE05

EC-PE08

EC-PE10

Input voltage

DC12V

DC12V

DC12V

Max. power

≤480W

≤300W

≤250W

DP

5cm

8cm

10cm

Unit screen width

1m

m

1m

String qty per unit

20strings/m

12stings/m

10stings/m

String length per unit(can be customized)

≤10m

≤16m

≤20m

LED number of each series

≤200 pcs/string

≤200 pcs/string

≤200 pcs/string

LED light source

SMD3535RGB built-in IC

SMD3535RGB built-in IC

SMD3535RGB built-in IC

LED chip brand

Sanan/Epistar

Sanan/Epistar

Sanan/Epistar

LED color

RGB

RGB

RGB

Beam angle

360°

360°

360°

Gray level

256

256

256

Refresh rate

>30Hz/s

>30Hz/s

>30Hz/s

IP rate

IP66

IP66

IP66

Working temperature

-30℃~+50℃

-30℃~+50℃

-30℃~+50℃

Lifetime

≥50000H

≥50000H

≥50000H

Control mode

SPI control

SPI control

SPI control

Installs way

According to the scene can be hoisting,wall,glass installation

According to the scene can be hoisting,wall,glass installation

According to the scene can be hoisting,wall,glass installation

Certificate

ETL  CE  ROHS

ETL  CE  ROHS

ETL  CE  ROHS
