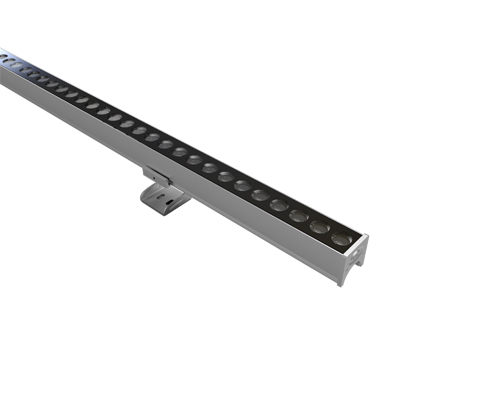

Linear Wall Washer Light Outdoor EXC-W30BBL

EXC-W30BBL full-color series consists of strip-shaped small-power wall washer lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape washes lighting, applicable on building facades, bridges, stages, etc. There are many options for lamp length specifications available.


Specification Optical Parameters of Linear Wall Washer Light Outdoor EXC-W30BBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: 25*45°, 20°and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Linear Wall Washer Light Outdoor EXC-W30BBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum: 12W


Control Parameters of Linear Wall Washer Light Outdoor EXC-W30BBL

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Linear Wall Washer Light Outdoor EXC-W30BBL

  • Shell Material: Aluminum

  • Surface Color: Black&White,Off-white, Other color optional

  • Structure Size: 998mm x33mm x 55.5mm (L x W x H, exclude Mounting Bracket)

  • Cover: PC

  • Total Weight: 0.94KG


Environmental Parameters of Linear Wall Washer Light Outdoor EXC-W30BBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
