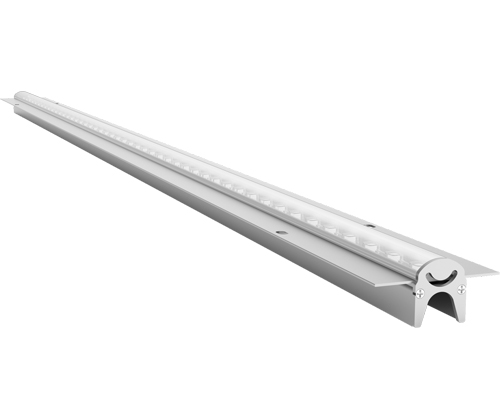

Outdoor Linear Light Contour EXC-U20TAL0

EXC-U20TAL0 full-color series products are extra-narrow LED linear light with aluminum shell for outdoor landscape decoration. The width of EXC-U20NB is only 20mm, each one with 8 pixels, and each pixel can realize 8bit/16bit grade grayscale color changing. EXC-U20NB can be applicable for super large areas displaying or outline the building. It also can be used to decorate facade inside and outside, even small area wall-washing effect

Specification Optical Parameters of Outdoor Linear Light Contour EXC-U20TAL0

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: ≥105°

  • Source Life: 50,000h


Electrical Parameters of Outdoor Linear Light Contour EXC-U20TAL0

  • Working Voltage: DC 24V

  • Rated Power: 9W/12W/15W/18W


Control Parameters of Outdoor Linear Light Contour EXC-U20TAL0

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Outdoor Linear Light Contour EXC-U20TAL0

  • Shell Material: Aluminum alloy

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 999mm x 54mm x 26mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 0.45Kg


Environmental Parameters of Outdoor Linear Light Contour EXC-U20TAL0

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
