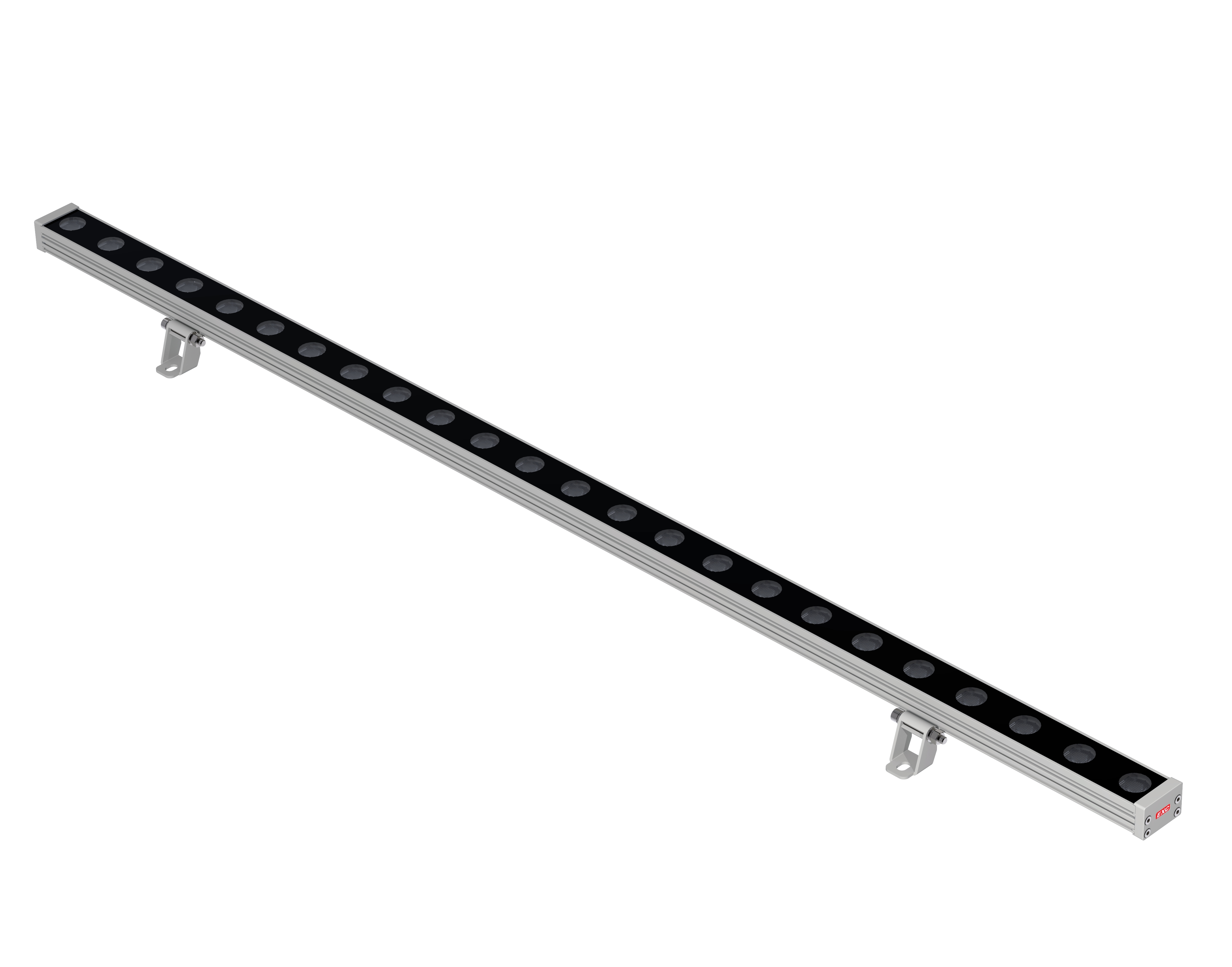

EXC-W35CBL Multi-pixel LED Wall Washer

Name: EXC-W35CBL Multi-pixel LED Wall Washer
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-W35CBL series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED, can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Versatile length allows various options.

Get a quote

Features

Cancel the knapsack; light,thin,and simple in design
Patented comb-like convection design ensure better heat dissipation
Low thermal resistance path heat dissipation design
Design of unique waterproof and ventilation
Outdoor lighting protection and electrostatic discharge (ESD) protection design
Projection distance: 1-1.5m

Specification

Basic Specifications
Color Range	W(2200K-6500K)
Light Source	18/24 pcs LEDs
Working Voltage	DC 24V
Max. Power Consumption	18W/24W
Control	ON/OFF
Segment	1
Grey Scale	/
Source Life	50,000 h
RDM	Optional
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Housing	High Strength Aluminum
Cover	Tempered glass
Weight	0.9KG
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Light Intensity	1260LM/1680LM
Beam Angle	25*40°

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
