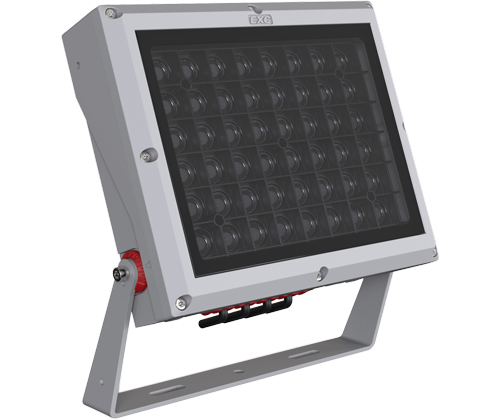

Large LED Flood Light EXC-B265BBL

EXC-B265BBL series consists of square full-color flood lights with high-strength aluminum-alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Specification Optical Parameters of Large LED Flood Light EXC-B265BBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW

  • Beam Angle:

  • W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°

  •  RGB-3030P7/CREE XP series: 6°/8°/10°/15°/20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 17°/20°/30°/45°/60°

  • Source Life: 50,000h


Electrical Parameters of Large LED Flood Light EXC-B265BBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 48W/72W/96W


Control Parameters of Large LED Flood Light EXC-B265BBL

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Large LED Flood Light EXC-B265BBL

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 265mm x 220mm x 76mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 4.1kg


Environmental Parameters of Large LED Flood Light EXC-B265BBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
