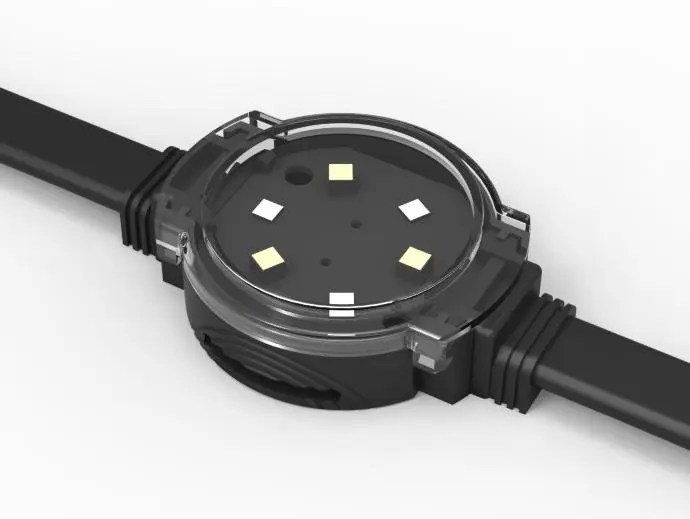

LED Pixel Light EXC-P42GP

EXC-P42GP full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P42GP pixel is a separate lighting pixel, and each pixel can realize 4096 grades gray scale changing. They can be used for indoor and outdoor applications, such as building facade, shopping mall, celebration ceremony or party decoration. Customized pixel pitch, and easy installation.


Feature

  • The newest generation technology: DMX512 parallel bus design

  • Clip on-off style connection and   anti- pull connection without connector design

  • High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design

  • Flexible design ensures 4 kinds of mounting way


Specification

Basic Specifications

Color

W(2200K-6500K), RGB, RGB+W, etc...

Working Voltage

DC24V

Max. Power Consumption

W(1.2W/1.8W), RGB(0.9W/1.5W), RGB+W(1.2W/1.8W)

Light Source

4/6 pcs SMD LEDs

CRI

80

Control

DMX512, ON/OFF

Grey Scale

8bit,16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent, Opal, Crystal)

Housing

PC+ABS

Weight

35g

Dimensions

Ø42 x 16.5mm (Dia x H, exclude Mounting Bracket)

Installation

Mount with aluminum profile, steel wire,front clip

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

≥15cd(RGB)

Beam Angle

≥110°

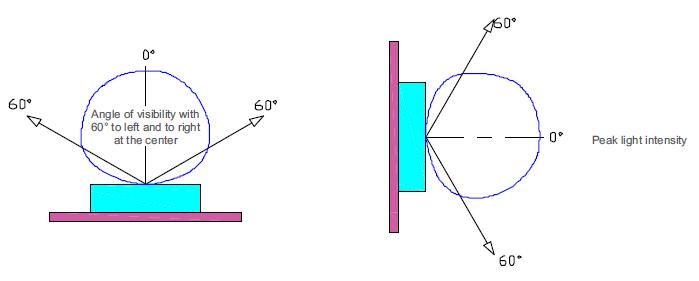

Light Intensity Distribution


Light Intensity Chart

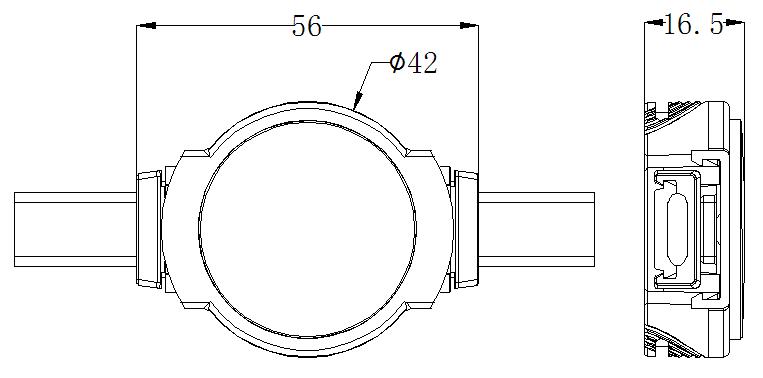

Physical Dimension

 Unit:mm

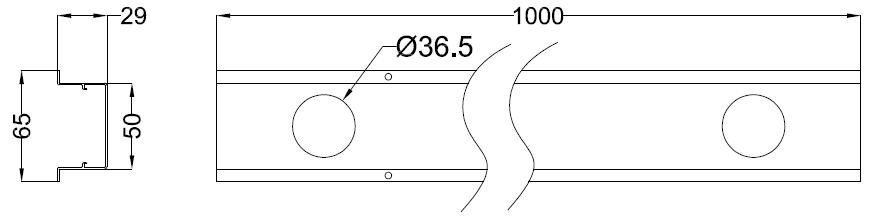

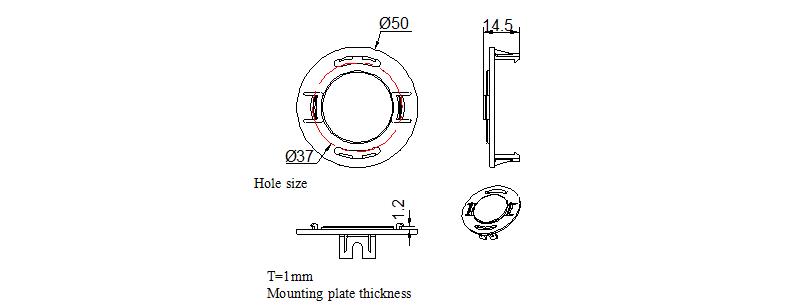

Mounting Accessories 1:

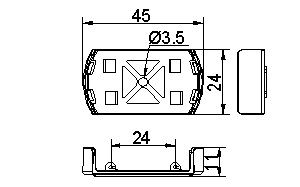

Mounting Accessories 2:


Mounting Accessories 3:



Installation Diagram

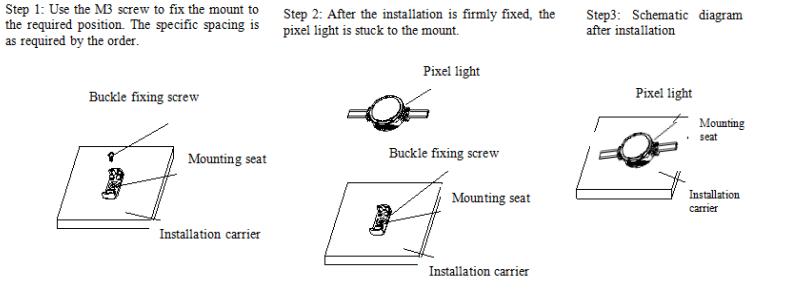

1.Mount with front clip

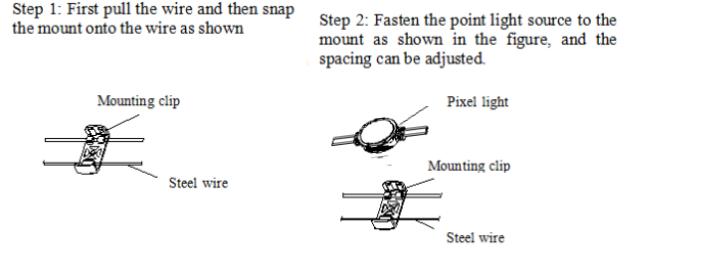

2. Mount with steel cable

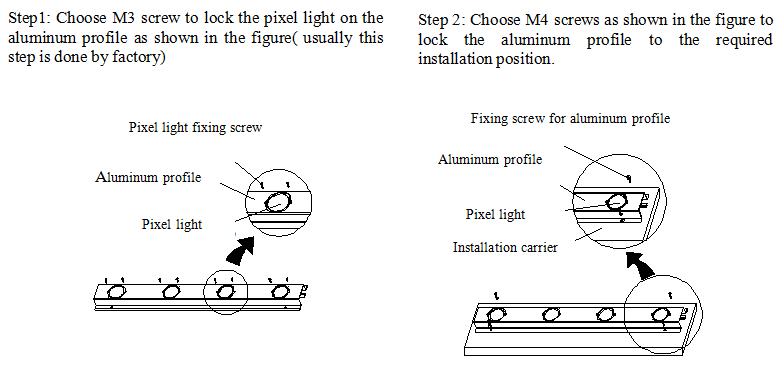

3. Installation by aluminum profile

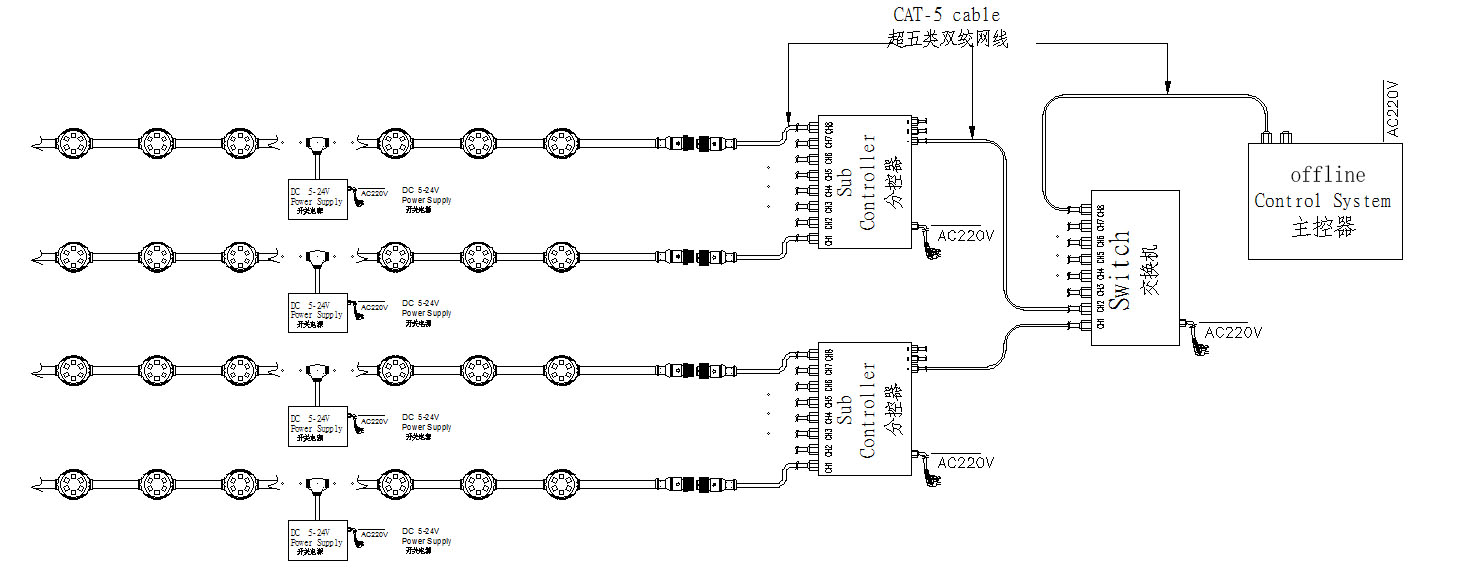

System connection diagram:

1, Host controller should connect with slave controller. Working voltage for controllers are AC220V.

2, On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.

3, each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.

4,The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.

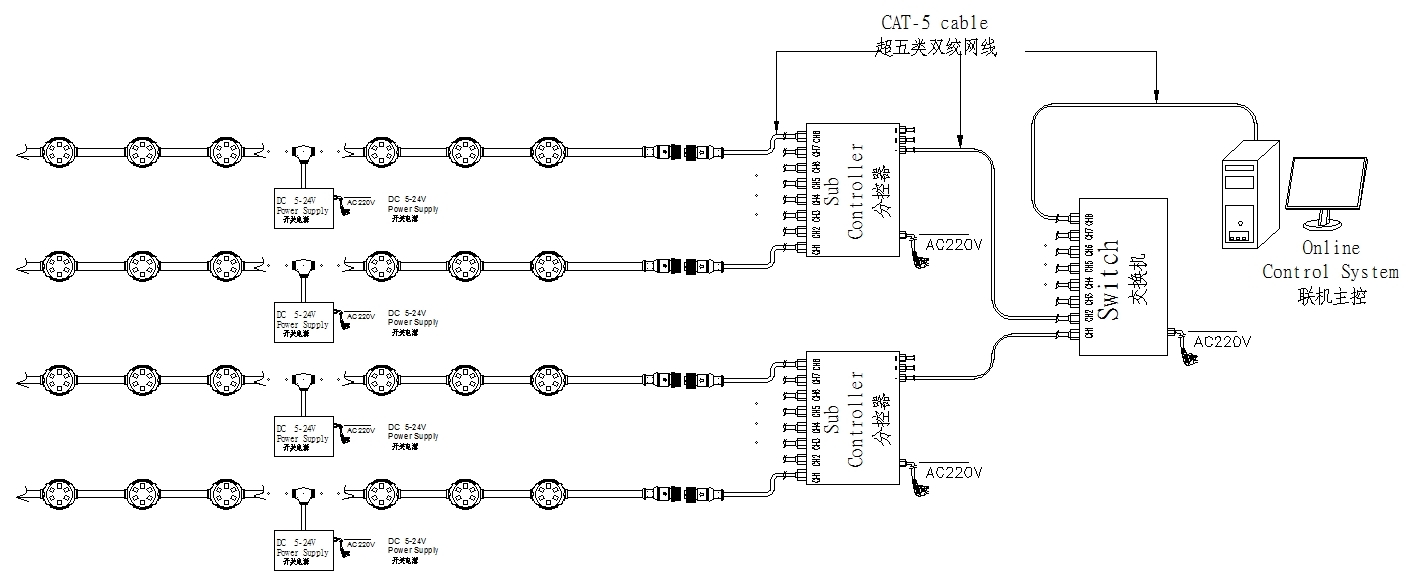

Online Controlling System Diagram



Offline Controlling System Diagram



Accessories :


1: Female and Male Connector( Connect to first dot light for signal transmission)



2: Y Shape Connector(For power Distribution)





3: Interconnection Cable(1.3M,3M,5M is standard length)




4: End Cap



Products
Get In Touch With EXC-LIGHT
Want the LED-lights price list? Fill out the form and we'll get back to you ASAP.
