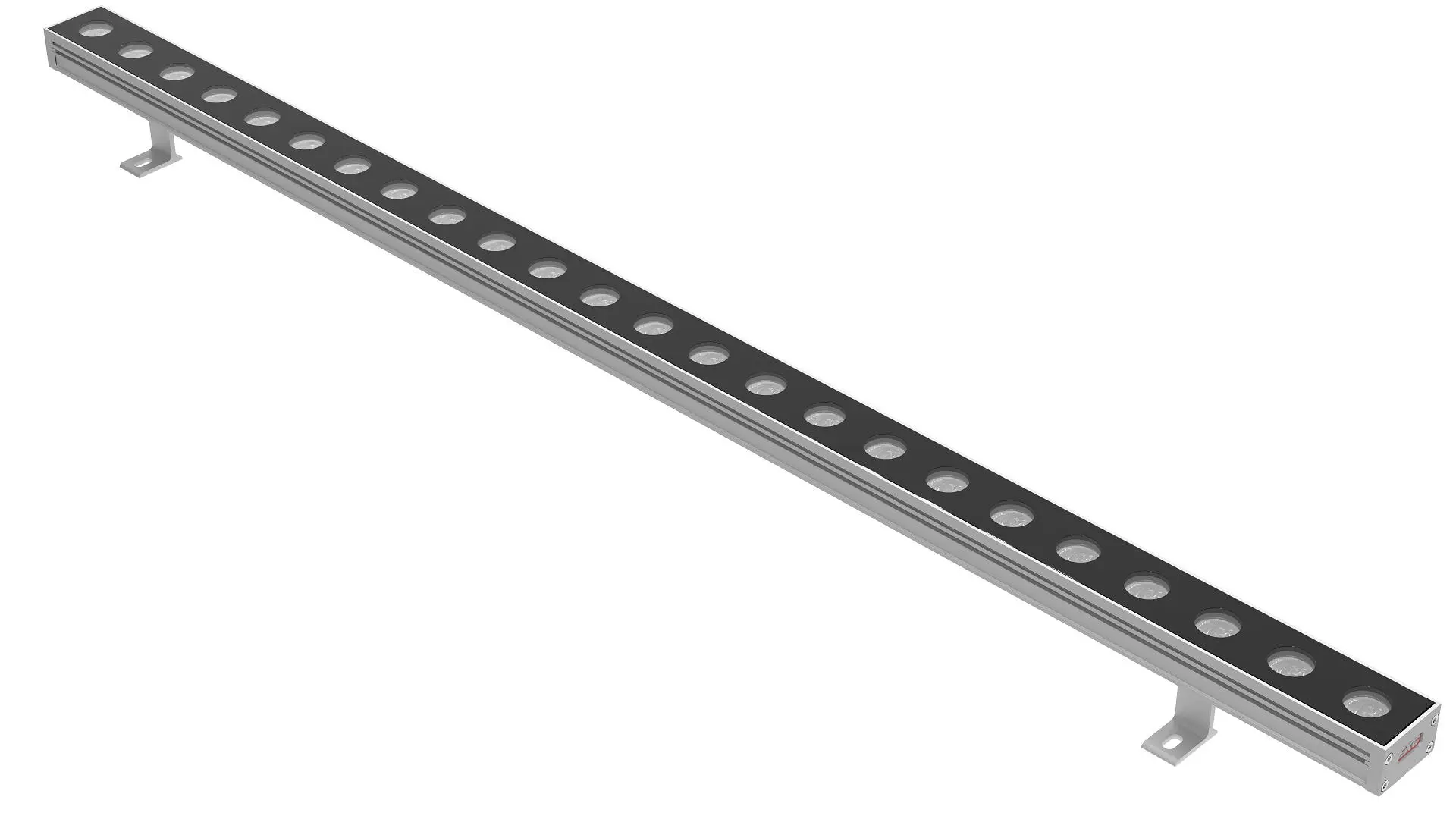

EXC-W45KBL /KBH Multi-pixel LED Wall Washer

EXC-W45KBL series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W45KBL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Versatile length allows various options.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Professional comb convection heat dissipation design

  • Unique full structure waterproof design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design


Specification

Basic Specifications

Color Range

W/RGB/RGBW

Light Source

36/24pcs SMD W LEDs

36/24pcs SMD RGB LEDs

24/18pcs SMD RGBW LEDs

Source Life

50,000 h

Material

High Strength Aluminum housing + tempered glass

Weight

1.61Kg

Environmental Specifications

Working Temperature

-40°C to 50°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Electrical Specifications

Working Voltage

DC 24V/AC220V

Max. Power Consumption

48W

Optical Specifications

Luminous

W(:1440LM/1920LM

RGB:720LM/960LM

RGBW:1080LM/1440LM

Beam Angle

12*22°、12*45°、16*50°、20*40°,10°、15°、17°、20°、25°、30°、45°、60°.. And other available

Controller

Host Controller

EXC-4000、EXC-5000、EXC-6000、EXC-8000、EXC-10000、EXC-ELAN

Slave Controller

EXC-2900

Data Interface

Data Adapter

-

Signal Cable

EXC-LED outdoor special cable
