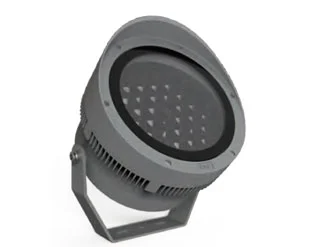

Special Light EXC-BC265BRL

EXC-BC265BRL Light tree lamp are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture can be used for accent lighting or flood lighting, such as ancient buildings,landscape garden,etc.

Feature

The newest generation technology: DMX512 parallel bus design

A new generation of structural waterproof design

High strength aluminum and low thermal resistance path cooling design

High reliability modularization design

Adjustable angle 0 degree ~15 degree, glass surface tilt 5 degree design

Outdoor lighting protection and electrostatic discharge (ESD) protection design

Load safety design

Projection distance: 1-5m


Specifications

Basic Specifications

Color Range

W(2200K-6500K), R+G+B, RGBW, R+G+B+W

Working Voltage

DC 24V

Max. Power Consumption

72W(W, R+G+B, RGBW), 100W(R+G+B+W)

Light Source

36(W, RGBW), 12+12+12(R+G+B), 12+12+12+12(R+G+B+W) PCS High Power LEDs

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

CRI

80

Control

DMX512, ON/OFF

Source Life

50,000 h

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

6.64Kg

Dimensions

265mm x 265mm x 342mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with screws

Working Temperature

-40°C to 600°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Efficiency flux

70LM/W(White), 25LM/W(R+G+B), 35LM/W(RGBW)

Beam Angle

W-3030P7: 10°/15°/20°/30°/45°/60°/80°                                                                   RGB-3030P7 /CREE XP Series:                                             6°/8°/10°/15°/20°/30°/45°/60°/80°                                                                            3535:  30°/45°/60°/80°                                                  5050:17°/20°/30°/45°/60°
