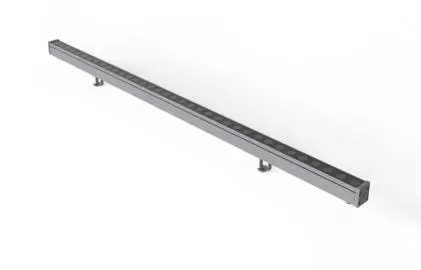

EXC-W30BBL Multi-pixel LED Wall Washer

EXC-W30BBL full color series consists of strip-shaped small-power wall washer lights with

high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc. There are many options for lamp length specifications available.


Features

  • Professional comb convection heat dissipation design

  • Unique waterproof and breathable design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design

  • Projection distance: 0.5-1m


Specification

Basic Specifications

Color Range

W(2700K-6500K),RGB,RGB+W

Light Source

36/48pcs LEDs

Working Voltage

DC 24V

Max. Power Consumption

10W/12W

Control

DMX512

Segment

1/4/8

Grey Scale

8bit, 16bit

Source Life

50,000 h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Housing

High Strength Aluminum

Cover

Tempered glass

Weight

0.94KG

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C


Protection Rating

IP66

Efficiency flux

≥70LM/W(White),≥45LM/W(RGBW),≥30LM/W(RGB)

Beam Angle

25*45°/20°

Host Controller

EXC-5200

Slave Controller

EXC-2905T1

Signal Cable

EXC-LED outdoor special cable
