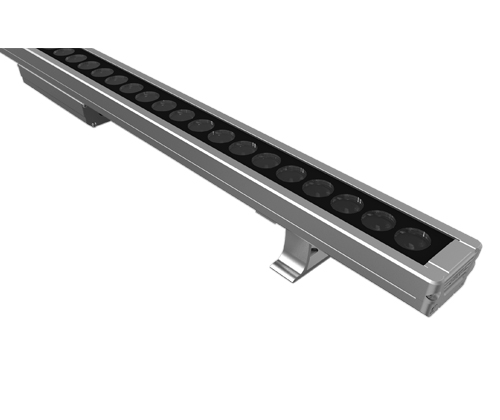

EXC-W55CBL Multi-pixel LED Wall Washer

EXC-W55CBL full color series are are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W55CBL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.

Specification Optical Parameters of Economic Wall Washer Light Outdoor EXC-W55CBL

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: RGB, RGB+W, etc

  • Beam Angle: 12°, 12*22°, 16*50°and other angles optional

  • Source Life: 50,000h


Electrical Parameters of Economic Wall Washer Light Outdoor EXC-W55CBL

  • Working Voltage: DC 24V

  • Rated Power: Maximum 36/48W(white), 54/60W(RGB), 48W(RGBW)


Control Parameters of Economic Wall Washer Light Outdoor EXC-W55CBL

  • Control Method: DMX512, ON/OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of Economic Wall Washer Light Outdoor EXC-W55CBL

  • Shell Material: Aluminum

  • Surface Color: Black&White,Off-white, Other color optional

  • Structure Size: 1005mm x 55mm x 8.2mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 2.6KG


Environmental Parameters of Economic Wall Washer Light Outdoor EXC-W55CBL

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
