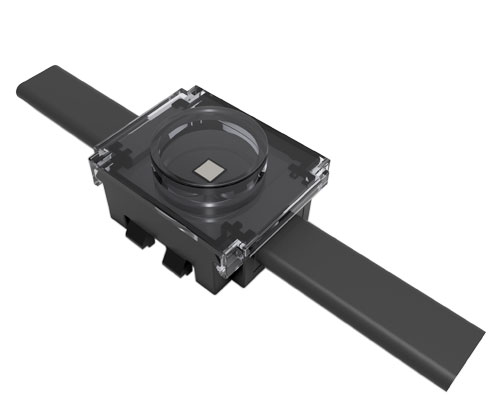

LED Pixel Light EXC-P22GP

It's called P22GP for a reason, With only 22mm in width, which is designed for outdoor landscape lighting by EXC-LED. Each pixel dot is a separate lighting pixel, and each pixel dot can realize 256 grade grayscale changing. They can be used for indoor and outdoor applications, such as building facades, shopping malls, celebration ceremony or party decorations. Customized pixel pitch, and easy installation.

Outdoor Pixel Lights 1W EXC-P22GP Specification Optical Parameters

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color:  RGB, RGB+W, etc

  • Beam Angle: 120degree, Open beam, and other angles optional

  • Source Life: 50,000h


Electrical Parameters of LED Pixel Light 1W EXC-P22GP

  • Working Voltage: DC 5V

  • Rated Power: Maximum:0.3W


Control Parameters of LED Pixel Light 1W EXC-P22GP

  • Control Method: DMX512/On Off

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Pixel Light 1W EXC-P22GP

  • Shell Material: PC

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 30mm x 26mm x 17.45mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 10g


Environmental Parameters of LED Pixel Light 1W EXC-P22GP

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 65°C

  • Protection rating: IP66

  • Application environment: Outdoor
