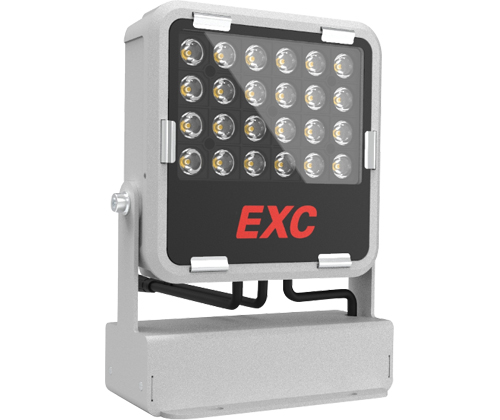

LED Flood Light Medium EXC-B185CBH

EXC-B185CBH full color series are high power outdoor landscape flood lighting fixture with high strength aluminum alloy housing by EXC-LED. Each lighting fixture is a separate lighting pixel, and each pixel can realize 8bit/16bit grades gray scale changing. Each lighting fixture can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc.

Specification Optical Parameters of LED Flood Light Medium EXC-B185CBH

  • LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram

  • Color: W(2200K-6500K), R+G+B, R+G+B+W, RGBW

  • Beam Angle:

  • W-3030P7: 8°/10°/15°/20°/30°/45°/60°/80°

  • RGB-3030P7/CREE XP series: 8°/10°/15°/20°/30°/45°/60°/80°

  • 3535: 30°/45°/60°/80°

  • 5050: 20°/30°/45°/60°

  • Source Life: 50,000h


Electrical Parameters of LED Flood Light Medium EXC-B185CBH

  • Working Voltage: AC 220V

  • Rated Power: Maximum 36W/48-72W


Control Parameters of LED Flood Light Medium EXC-B185CBH

  • Control Method: DMX512 /ON OFF

  • Gray Scale: 8Bits/16Bits

  • Control System: EXC-ALL the lights control system


Structural Parameters of LED Flood Light Medium EXC-B185CBH

  • Shell Material: High Strength Aluminum

  • Cover: Tempered glass

  • Surface Color: Black&White, Other colors optional

  • Structure Size: 210mm x 184mm x 261mm (L x W x H, exclude Mounting Bracket)

  • Total Weight: 3.8kg


Environmental Parameters of LED Flood Light Medium EXC-B185CBH

  • Working Temperature: -40°C to 50°C

  • Storage Temperature: -40°C to 70°C

  • Protection rating: IP66

  • Application environment: Outdoor
