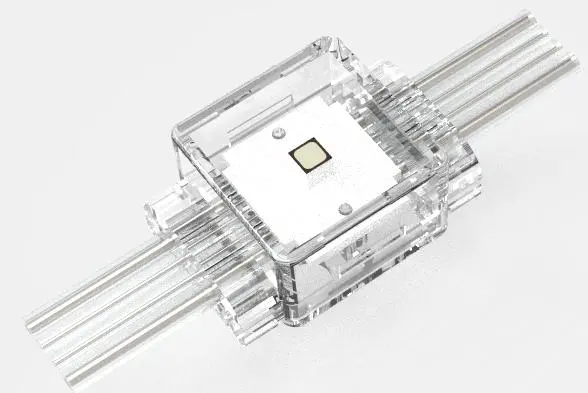

EXC-P18BP0 are a series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P18BP0 pixel is a separate lighting pixel, and each pixel can realize ≧256 grades gray scale changing. They can be used for indoor and outdoor applications, such as building facade, shopping mall, celebration ceremony or party decoration. Customized pixel pitch, and easy installation
High transparency, high waterproof, high appearance design
Full angle, high brightness, multi view effect design
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glueOutdoor lighting protection and electrostatic discharge (ESD) protection design
Flexible design ensures kinds of mounting way
Basic Specifications | |
Color Range | RGB |
Light Source | 1pc SMD RGB LEDs |
Source Life | 50,000h |
Material | PC transparent lamp case +PC transparent lampshade |
Weight | 6g |
Environmental Specifications | |
Working Temperature | -40°C to 50°C |
Storage Temperature | -40°C to 70°C |
Protection Rating | IP66 |
Electrical Specifications | |
Working Voltage | 5V/12V |
Max. Power Consumption | 0.3W |
Optical Specifications | |
Central light intensity | Mix white:2.5cd |
Beam Angle | ≥105° |
Controller | |
Host Controller | EXC-M520 |
Slave Controller | EXC-2905T1 |
Light Intensity Distribution | |

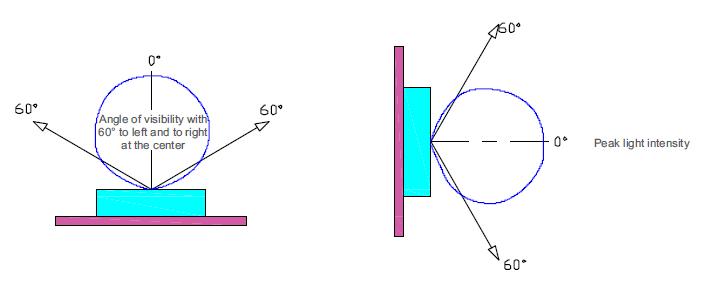

Light Intensity Chart |
|
Order Info | ||||||||||||
Series | Model | Light source | Color | Control | Grey Scale | Visual | feedback | material | Working voltage | watt | intensity | Led brand |
BP | EXC-P18BP0-M1 | 1pc SMD RGB | RGB | RBT 512 | ≧256 | / | / | plastic | DC5V | 0.3W | 2.5cd | Option |
EXC-P18BP0-M1 | 1pc SMD RGB | RGB | RBT 512 | ≧256 | / | / | plastic | DC12V | 0.3W | 2.5cd | Option |

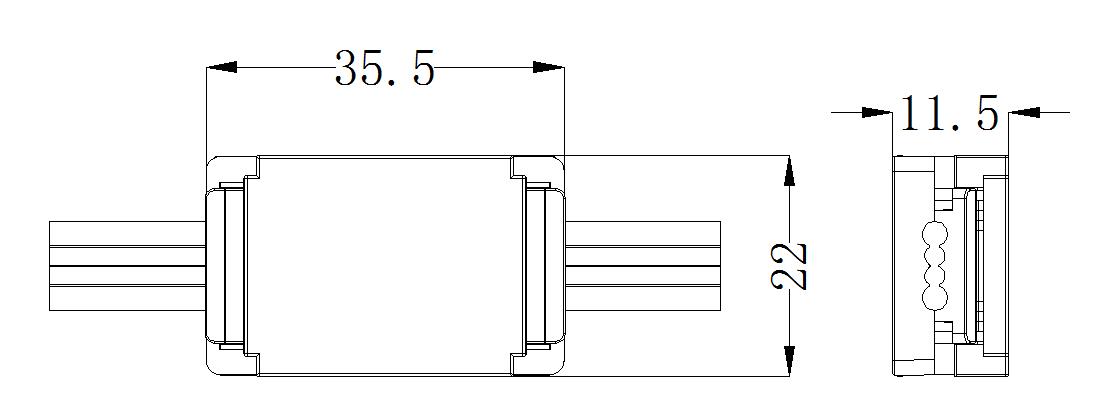

Physical Dimension 单位:mm Unit:mm |

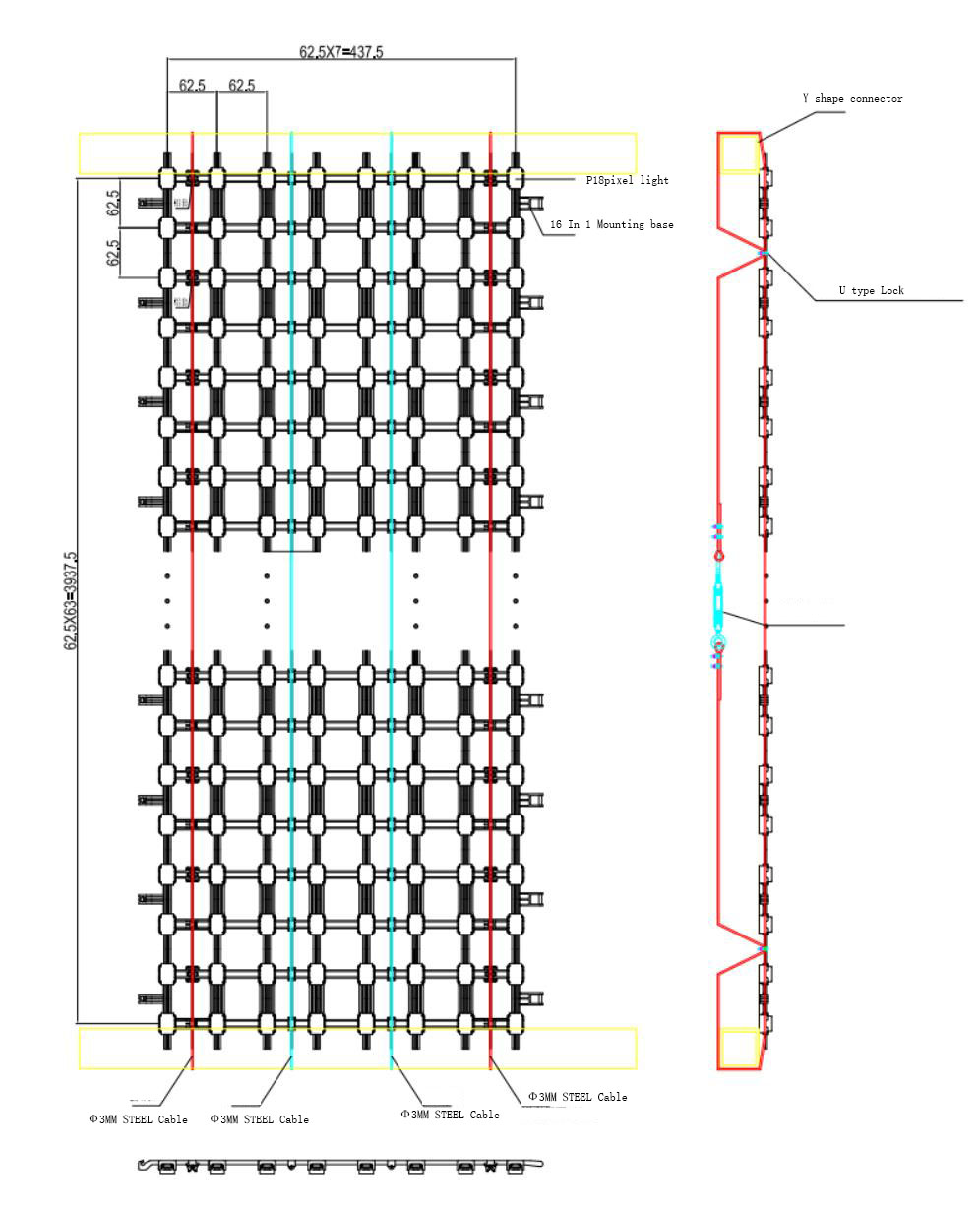

Installation Diagram |
|
System connection diagram: |
1、Host controller should connect with slave controller. Working voltage for controllers are AC220V. 2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V. 3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission. 4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc. 5、the maximum spacing for first lamp more than 5 meters,add a signal amplifier if necessary |

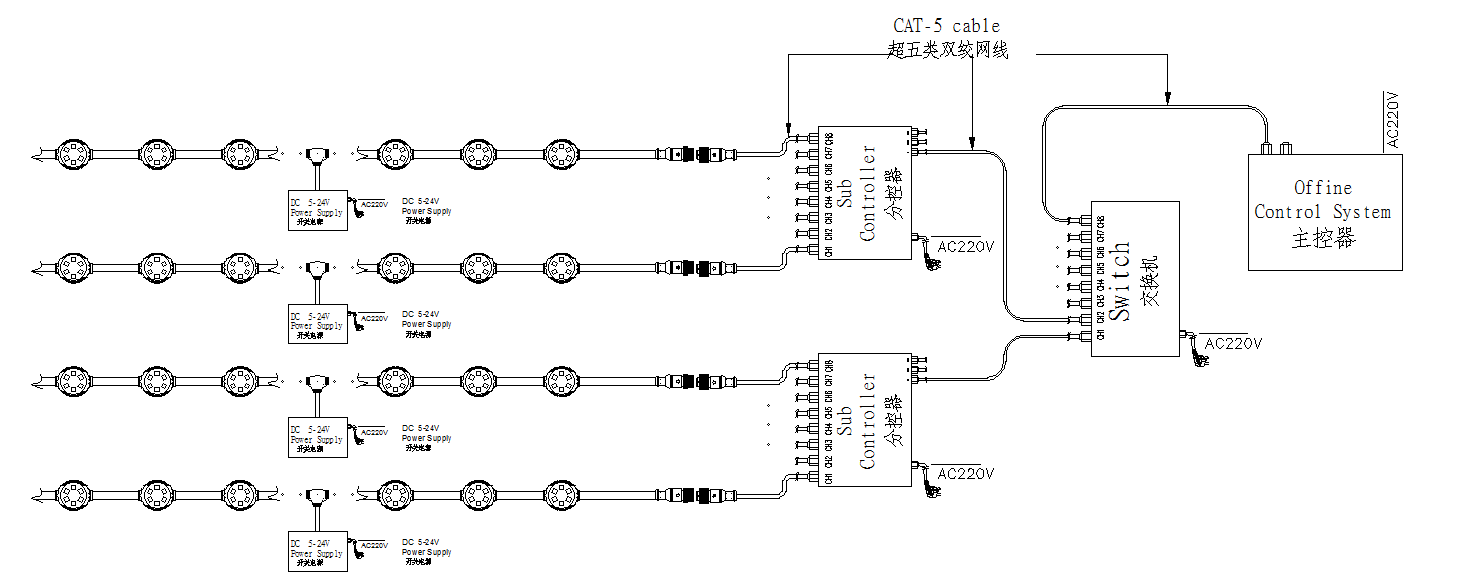

Offline Controlling System Diagram |

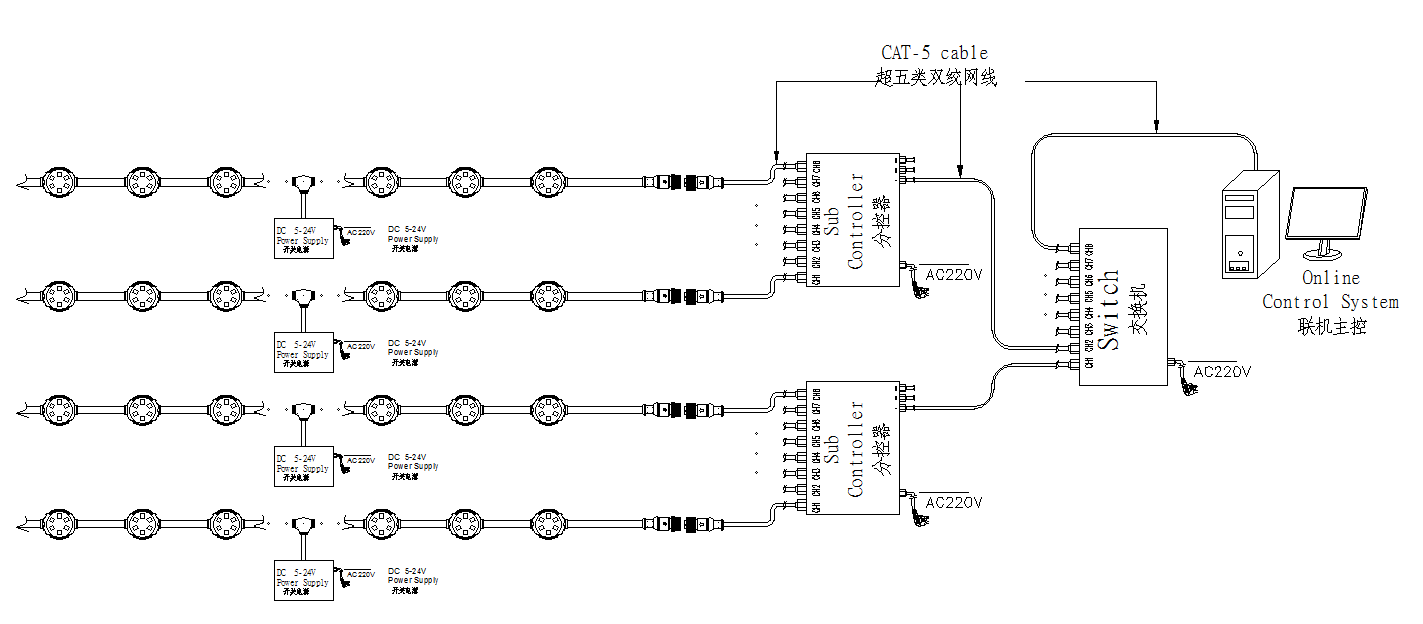

Online Controlling System Diagram |
