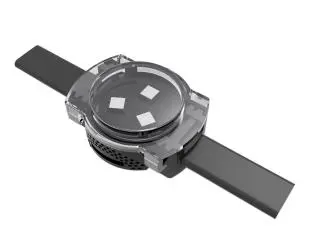

LED Pixel Light EXC-P33GP1

Name: LED Pixel Light EXC-P33GP1
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-P33GP1 full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P33GP1 pixel is a separate 8bit/16bit grades gray scale changing. They can be used for indoor and outdoor applications, Customized pixel pitch, and easy installation.

Get a quote

Features

The newest generation technology: DMX512 parallel bus design
Clip on-off style connection and anti- pull connection without connector design
High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue
Outdoor lighting protection and electrostatic discharge (ESD) protection design
Flexible design ensures mounting way

Specification

Basic Specifications
Color	W(2200K-6500K), RGB, RGB+W, etc...
Working Voltage	DC12V15V
Max. Power Consumption	0.9W/1W
Light Source	3 pcs SMD LEDs
CRI	80
Control	DMX512, ON/OFF
Grey Scale	8bit, 16bit
Source Life	50,000h
RDM	Optional
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
Cover	PC(Transparent, Opal, Crystal)
Housing	PC+ABS
Weight	24g

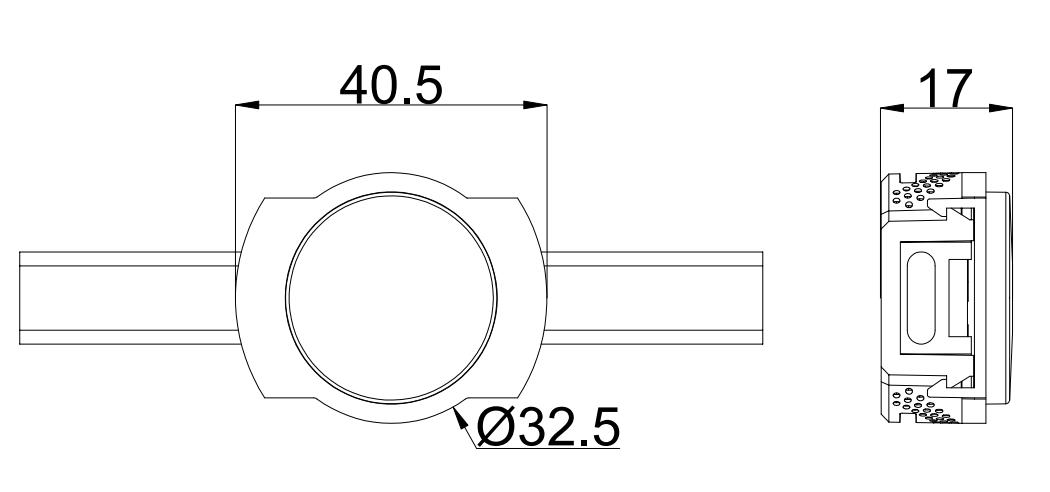

Dimensions	40.5mm x 32.5mm x 17mm (L x W x H, exclude Mounting Bracket)

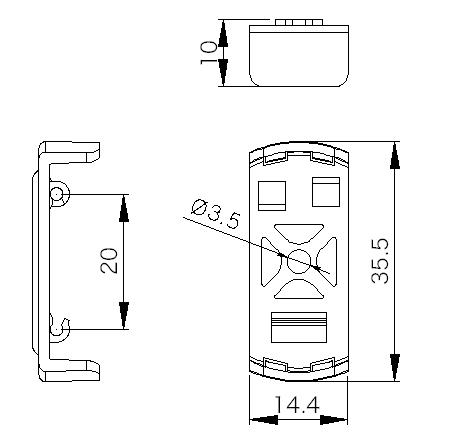

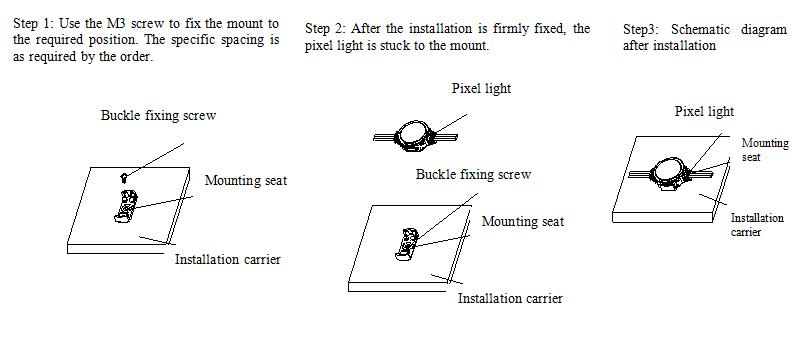

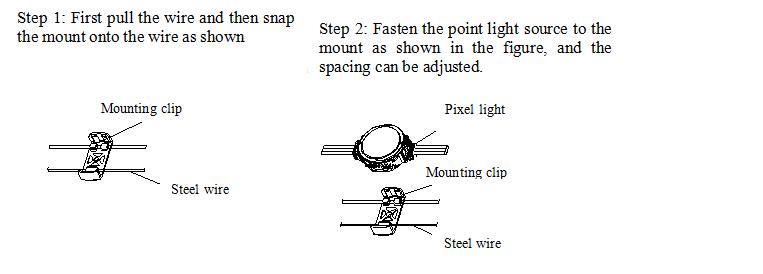

Installation	Installation with front-loading buckle+steel wire+profile
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Luminous Flux	25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)
Central Light Intensity	≥7.5cd(RGB)

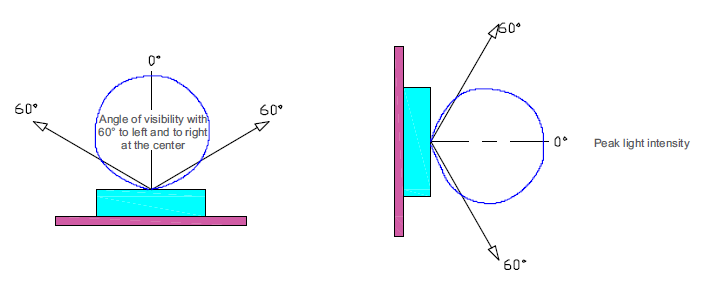

Beam Angle	≥95°
