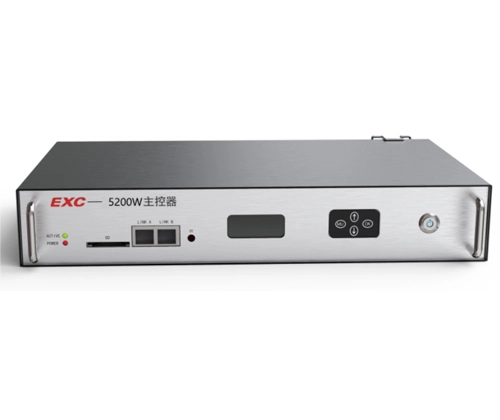

Controller EXC-5200W

EXC-5200W is the off-line control system we EXC-LED design for medium-scale lighting system,it adopt advanced digital video processing technology ,combined with leading FPGA technology and optimization algorithm model as core,perfectly present the video.With mature network signal transmission technology and distributed cabling system,the system have the advantage of high stability,simple and reliable .The system support standard switch ,EXC-2905T1 sub controller and all EXC standard lamps and DMX512 lamps.

Features

  • Off-line controller,need to work with EXC-2905T1sub controller.

  • Support Ethernet port and TCP/IP/UDP data communication protocol.

  • Support parallel connection with switch:decrease the amount of the cascade connection of the controllers to increase he system stability.

  • Support multiple GPS satellite/BTS wireless base station synchronize control.

  • Maximum support 60FPS.Support 65536 gray scale.

  • Support Support DMX512/1900 general protocol and extension DMX512 protocol.

  • Support independently control of the red,green,blue color.Users will get the mix-white color more effective and easier.

  • Support automated,timing,preset program files.

  • SD card storage,support maximum 32G,preset maximum 99 program files.

  • Support different type of protocol in one system.

  • Support all series of EXC products.


Specification

Basic Specification

External Size

310*199*52mm

Shell Material

High quality electro-galvanized steel sheet+power injection+aluminium sheet

Weight

1.8kg

Output port

2Port

Supported Lights

Support all series of EXC products

Storage Medium

SD card

Communication Port

1000Mbps Ethernet port x2

Communication Protocol

TCP/IP/UDP protocol

Working Condition

Working Temperature

5°C~40°C

Storage Temperature

-20°C~60°C

Protection Rating

IP5X

Electrical Specification

Signal Connector

Dedicated EXC connector

Working Voltage

AC 220V

Maximum Wattage

15W

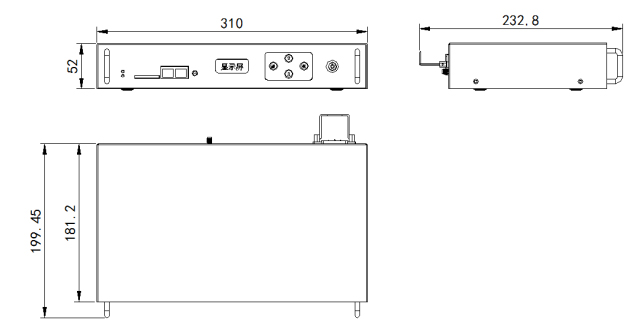

Physical Dimension:



Available Model

Series

Model

Main Features

Working Voltage

Max Wattage

Size

EXC-5200W

EXC-5200

The fourth generation、off-line main controller、two UTP interface,full range of EXC product、IP54、1000000pixels、standard configuration、not extensible

AC220V

15W

310*199*52mm

EXC-5200WT

(Shipped with BTS module)

The fourth generation,off-line main controller、two UTP interface、full range of EXC product、IP54、1000000pixels、standard configuration、extensible

AC220V

15W

310*199*52mm

EXC-5200WG

(Shipped with GPS module)

The fourth generation、off-line main controller、two UTP interface、full range of EXC product、IP54,1000000pixels、standard configuration、extensible

AC220V

15W

310*199*52mm

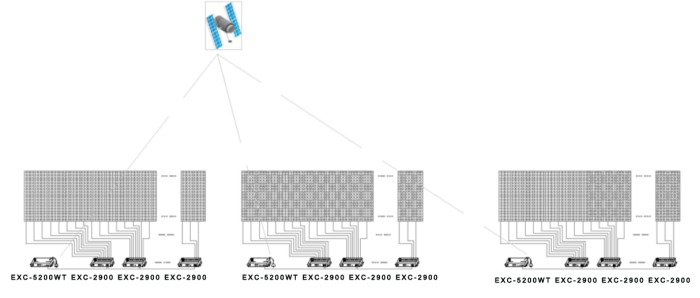

EXC-5200W Wireless synchronization system connection diagram:
