LED Pixel Light EXC-P22GP5

EXC-P22GP5  series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P22GP5 pixel is a separate lighting pixel, and each pixel can realize 4096 grades gray scale changing. They can be used for indoor and outdoor applications, such as building facade, shopping mall, celebration ceremony or party decoration. Customized pixel pitch, and easy installation.


Features

  •  Design of new generation serial redundancy control technology

  • Clip on-off style connection and   anti- pull connection without connector design

  • High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue

  • Outdoor lighting protection and electrostatic discharge (ESD) protection design


Specification

Basic Specifications

Color Range

RGB

Light Source

2pc SMD RGB LED

Source Life

50,000 h

Material

PC

Weight

10g

Environmental Specifications

Working Temperature

-40°C to 50°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Electrical Specifications

Working Voltage

DC 12V

Max. Power Consumption

0.72W

Optical Specifications

Central light intensity

≥4.5cd(RGB)

Beam Angle

≥110°


Controller

Host Controller

EXC-4000、EXC-5000、EXC-6000、EXC-8000、EXC-10000、EXC-ELAN

Slave Controller

EXC-2900

Data Interface

Data Adapter

-

Signal Cable

EXC-LED outdoor special cable

Light Intensity Distribution

Light Intensity Chart




Series

Model

Light Source

Color

Control Method

Grey Scale

Visual Feedback

Failure Feedback

Material

Working Voltage

Wattage

Led Brand

G

EXC-P22GP5-2M-C0

2pcs SMD RGB LEDs

RGB

RBT

4096

NO

NO

PC

DC12V

0.72W

Optional


Screen Manufacturer Order Info



Voltage

DC 5V

DC 12V

DC 5V

DC 12V

DC 5V

DC 12V

Summit Wattage

96W/㎡

230W/㎡

76W/㎡

180W/㎡

30W/㎡

72W/㎡

Average Wattage

32W/㎡

72W/㎡

25W/㎡

60W/㎡

10W/㎡

24W/㎡

Pixel Pitch

55*55mm

55*55mm

62.5*62.5mm

62.5*62.5mm

100*100mm

100*100mm

LEDS qty

1颗RGB

2颗RGB

1颗RGB

2颗RGB

1颗RGB

2颗RGB

CCT

RGB

RGB

RGB

RGB

RGB

RGB

LED Diodes

3535 RGB 3in1

3535 RGB 3in1

3535 RGB 3in1

3535 RGB 3in1

3535 RGB 3in1

3535 RGB 3in1

CD/M2

>480cd/㎡

>1150cd/㎡

>380cd/㎡

>900cd/㎡

>150cd/㎡

>360cd/㎡

Transparency rate

>52%

>52%

>57%

>57%

>80%

>80%

resolution ratio

324dot/㎡

324dot/㎡

256dot/㎡

256dot/㎡

100dot/㎡

100dot/㎡

Control Method

RBT

RBT

RBT

RBT

RBT

RBT

Refresh Rate

>2KHz

>2KHz

>2KHz

>2KHz

>2KHz

>2KHz

Repetition Frequency

>60HZ

>60HZ

>60HZ

>60HZ

>60HZ

>60HZ

Grey Scale

4096

4096

4096

4096

4096

4096


Physical Dimension

Unit:mm

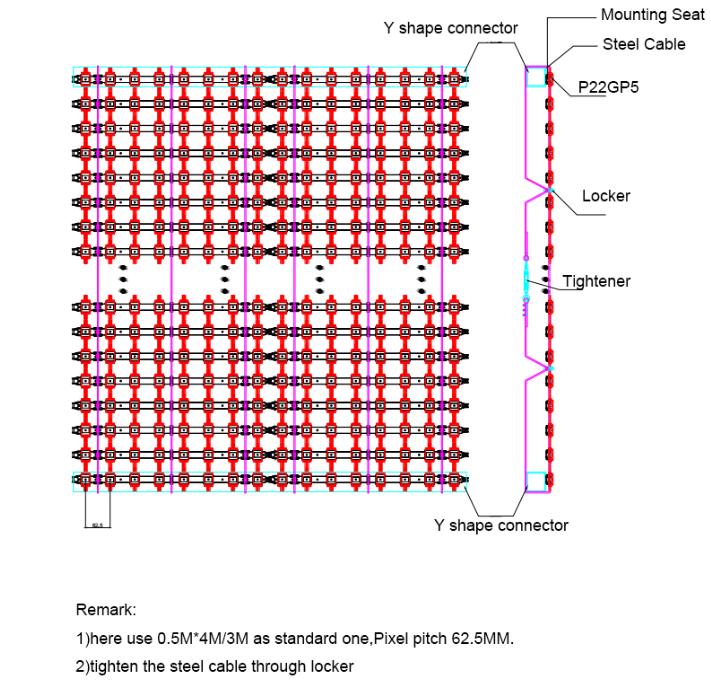

Installation Diagram



System connection diagram:

1、Host controller should connect with slave controller. Working voltage for controllers are AC220V.

2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V.

3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission.

4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc.

5、the maximum spacing of lamp not more than 5 meters,  need to add a signal amplifier if exceed .

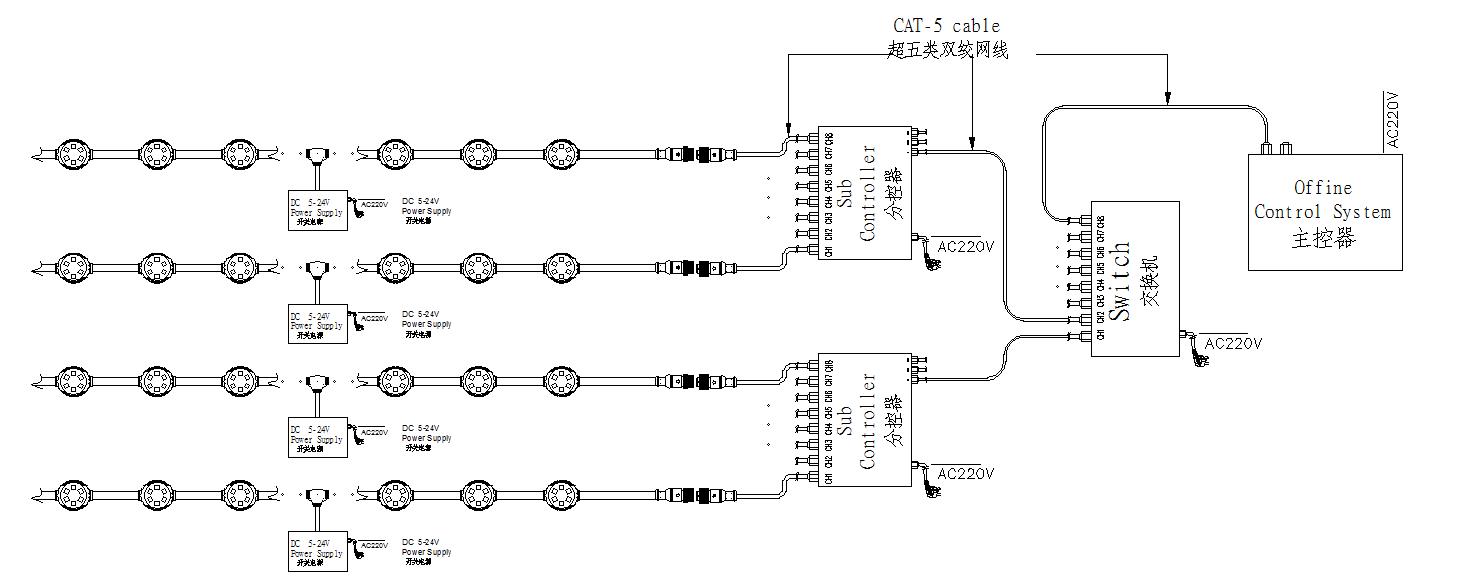

Offline Controlling System Diagram

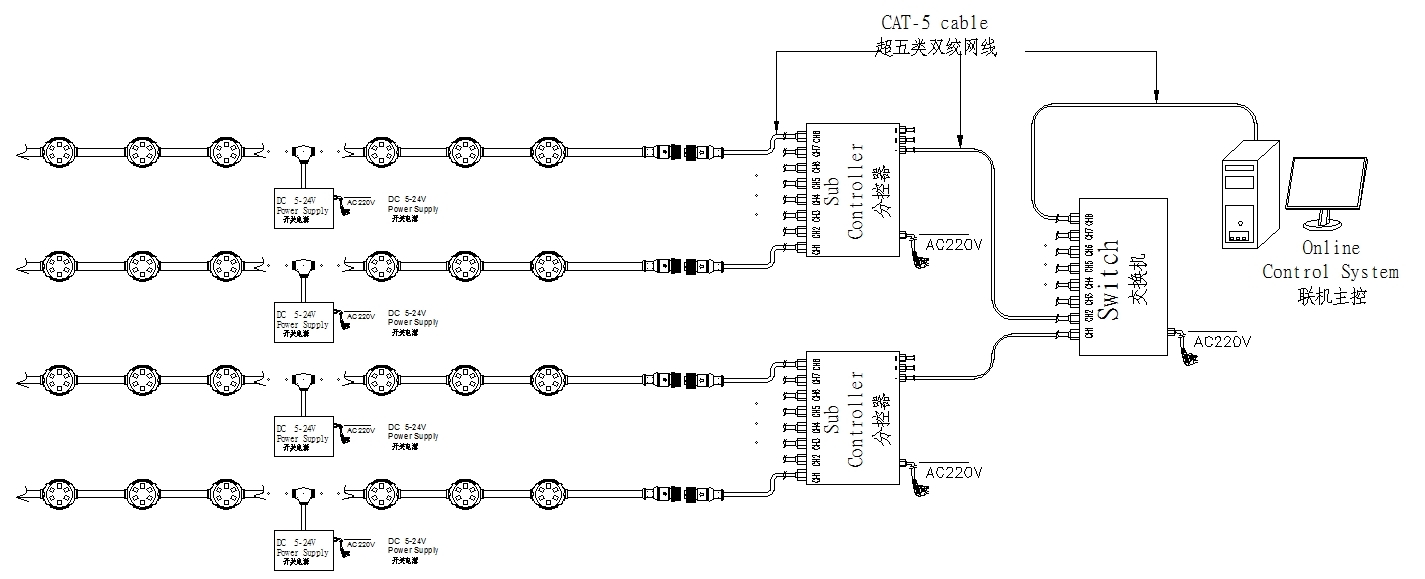

Online Controlling System Diagram
