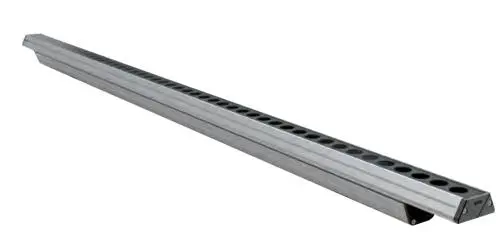

EXC-W50DBL Multi-pixel LED Wall Washer

EXC-W50DBL series are are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED.Each lighting fixture is a separate lighting pixel, and each pixel can realize 65536 grades gray scale changing. EXC-W50DBL can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.


Features

  • The newest generation technology: DMX512 parallel bus design

  • Unique appearance, end face is diamond-shaped design

  • Professional comb convection heat dissipation design

  • Low thermal resistance path heat dissipation design

  • Outdoor lightning protection and electrostatic discharge (ESD) protection design

  • Projection distance: 1-3m


Specification

Basic Specifications

Color Range

R+G+B+W/2200-6500K)

Light Source

12pcs SMD R+12pcs SMD G+ 12pcs SMD B+12pcs SMD W LDES

48pcs SMD W LEDs

Source Life

50,000 h

Material

High Strength Aluminum housing + tempered glass

Weight

2.5Kg

Environmental Specifications

Working Temperature

-40°C to 50°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Electrical Specifications

Working Voltage

DC 24V

Power Consumption

48W

Optical Specifications

Light Intensity

2400LM(R+G+B+W)/3360LM(W-3000K)

Beam Angle

10°,and other beam angle available
