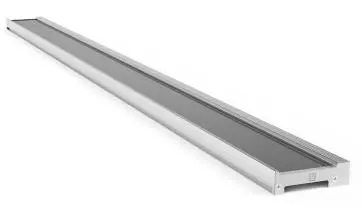

Outdoor Linear Light Contour EXC-U80ADB0

Name: Outdoor Linear Light Contour EXC-U80ADB0
Brand: AIKELITE TECHNOLOGY (HK) CO., LIMITED.

EXC-U80ADB0 full color series product are compact and invisible SMD LED linear light with aluminum shell for outdoor landscape decoration. The fixture can integrate entirely with the building, not affect the building appearance in daytime and show wonderful lighting effect at night. EXC-U80ADB0 can be applicable for super large area displaying or outline the building. It also can be used to decorate facade inside and outside, also reinforce the normal lighting function.

Get a quote

Features

Very compact design, only 23mm thickness.
Invisible design concept, combine with building very well
Aluminum alloy lamp body with low thermal resistance path heat dissipation design
Outdoor lightning protection and electrostatic discharge (ESD) protection design
Design of top hanging line, simple and convenient installation;
All aluminum metal, ultra-thin design, high - grade, graceful structure;

Specification

Basic Specifications
Color Range	W(2200K-6500K), RGB
Working Voltage	DC24V
Max. Power Consumption	12W, 15W(White)
Light Source	48, 60 pcs SMD LEDs
LED chip Brand	Optional(Cree, OSRAM, Lumileds, Epistar, etc...)
CRI	80
Control	DMX512, ON/OFF
Segment	1(W), 8(RGB)
Source Life	50,000 h
Housing	High strength aluminum alloy
Cover	Acrylic
Weight	1.3Kg
Working Temperature	-40°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Rating	IP66
Efficiency flux	20LM/W(White), 10LM/W(RGB)
Beam Angle	≥110°

Host Controller	EXC-5200
Slave Controller	EXC-2905T1
Signal Cable	EXC-LED outdoor special cable
